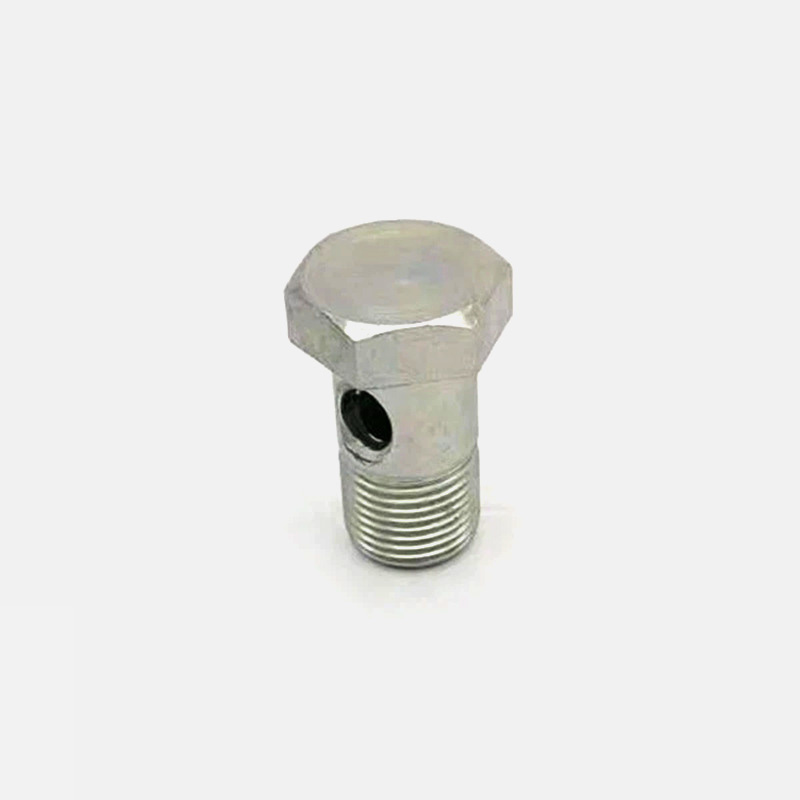

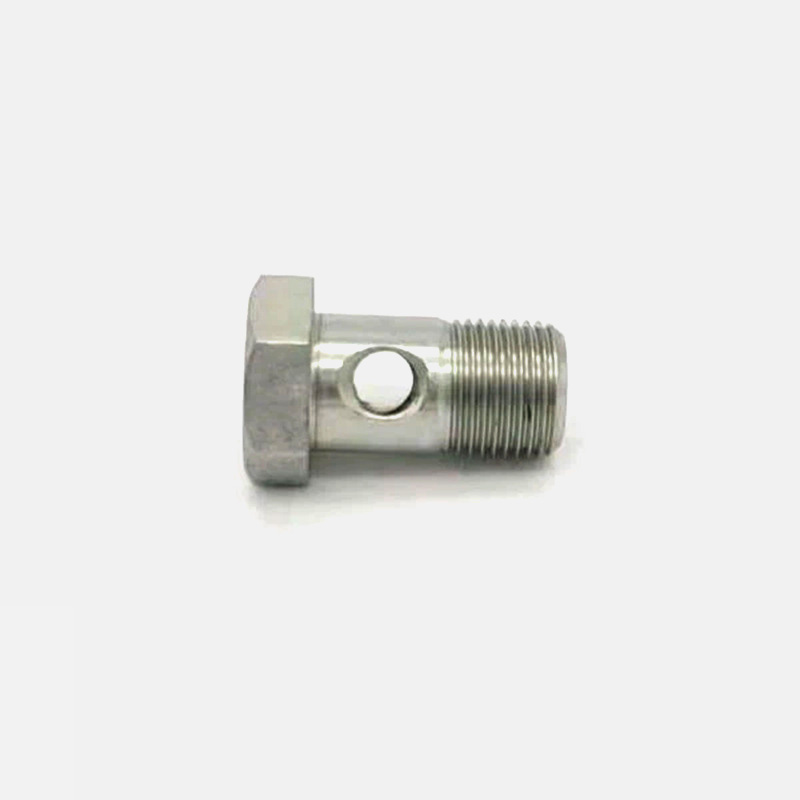

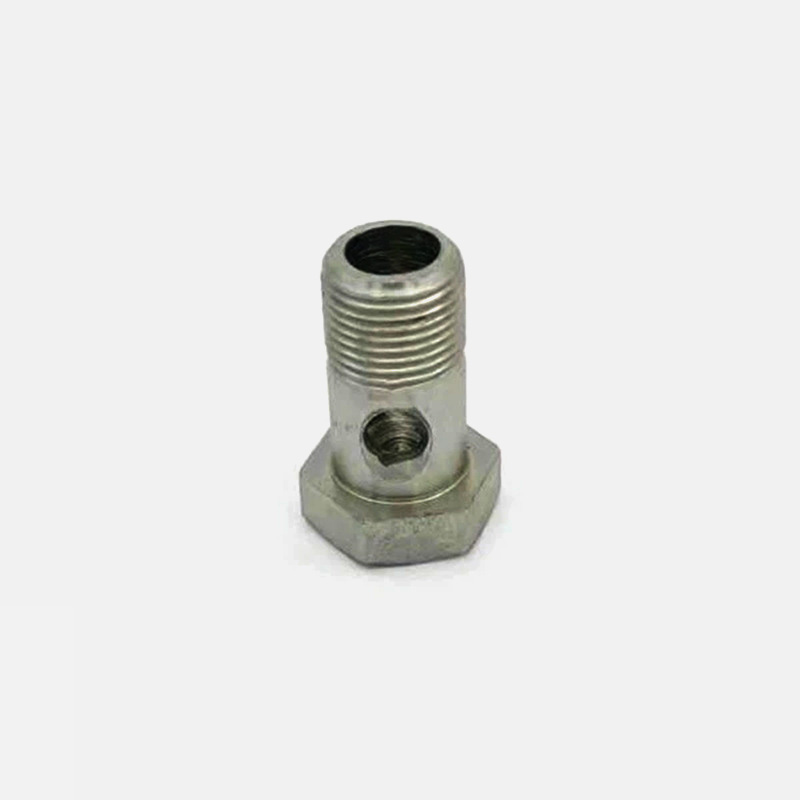

"E" size: M10X1.0 to M30X1.5
Standard: EATON
Stype : Metric Bolt
Colour: Sliver
Code: 700M-XX
Craft: Cold forging
Materials of Construction: Steel.
Surface treatment: 96 hours salt spray test
Original place: Zhejiang China
Brand name: TIANXIANG
PART NO. | THREAD E | DIMENSIONS | |||
A | B | C | S1 | ||
700M-10 | M10X1 | 19 | 5.5 | 6 | 14 |
700M-12 | M12X1.5 | 24 | 7 | 6 | 17 |
700M-14 | M14X1.5 | 26 | 9 | 6 | 19 |
700M-16 | M16X1.5 | 28 | 11 | 6 | 22 |
700M-18 | M18X1.5 | 32 | 13 | 6 | 24 |
700M-22 | M22X1.5 | 39 | 16 | 7 | 27 |
700M-26 | M26X1.5 | 45 | 20 | 7 | 32 |
700M-30 | M30X1.5 | 51 | 24 | 7 | 36 |
