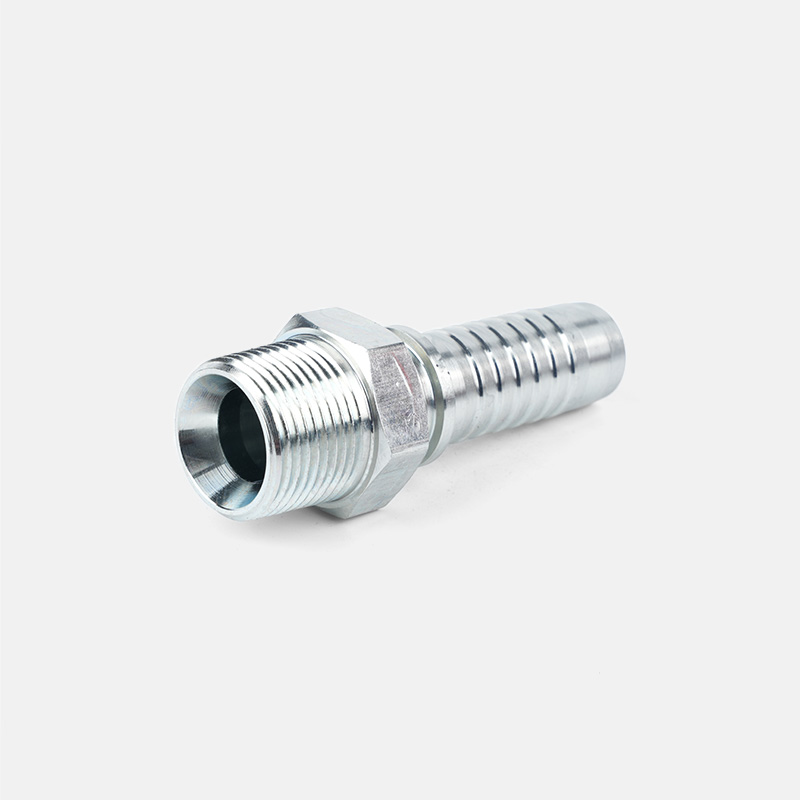

15611 - The -known and widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, also referred to as NPT. NPT has a tapered male and female thread that seals with Teflon tape or jointing compound.
Thread : NPT 1/8"to 2" , Except 5/8-14
Hose Size:1/4 to 2"

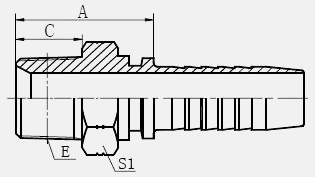

| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 15611-02-03 | Z1/8"X27 | 5 | 03 | 22.5 | 10.5 | 12 |
| 15611-02-04 | Z1/8"X27 | 6 | 04 | 22.5 | 10.5 | 12 |
| 15611-04-03 | Z1/4"X18 | 5 | 03 | 27.5 | 15 | 17 |
| 15611-04-04 | Z1/4"X18 | 6 | 04 | 28 | 15 | 17 |
| 15611-04-05 | Z1/4"X18 | 8 | 05 | 28 | 15 | 17 |
| 15611-04-06 | Z1/4"X18 | 10 | 06 | 27 | 15 | 17 |
| 15611-06-04 | Z3/8"X18 | 6 | 04 | 28 | 16 | 19 |
| 15611-06-05 | Z3/8"X18 | 8 | 05 | 28 | 16 | 19 |
| 15611-06-06 | Z3/8"X18 | 10 | 06 | 30 | 16 | 19 |
| 15611-06-08 | Z3/8"X18 | 12 | 08 | 30.5 | 16 | 19 |
| 15611-08-06 | Z1/2"X14 | 10 | 06 | 34.5 | 19.5 | 22 |
| 15611-08-08 | Z1/2"X14 | 12 | 08 | 34.5 | 19.5 | 22 |
| 15611-08-10 | Z1/2"X14 | 16 | 10 | 36 | 19.5 | 22 |
| 15611-12-08 | Z3/4"X14 | 12 | 08 | 37.5 | 19.5 |
27 |
| 15611-12-10 | Z3/4"X14 | 16 | 10 | 38 | 19.5 | 27 |
| 15611-12-12 | Z3/4"X14 | 20 | 12 | 38.5 | 19.5 | 27 |
| 15611-12-16 | Z3/4"X14 | 25 | 16 | 39.5 | 19.5 | 32 |
| 15611-16-10 | Z1"X11.5 | 16 | 10 | 45 | 25.5 | 36 |
| 15611-16-12 | Z1"X11.5 | 20 | 12 | 45 | 25.5 | 36 |
| 15611-16-16 | Z1"X11.5 | 25 | 16 | 44.5 | 25.5 | 36 |
| 15611-20-16 | Z1.1/4"X11.5 | 25 | 16 | 49.5 | 26.5 | 46 |
| 15611-20-20 | Z1.1/4"X11.5 | 32 | 20 | 49 | 26.5 | 46 |
| 15611-24-24 | Z1.1/2"X11.5 | 40 | 24 | 51 | 27.5 | 50 |
| 15611-32-32 | Z2"X11.5 | 50 | 32 | 55 | 27.5 | 65 |
