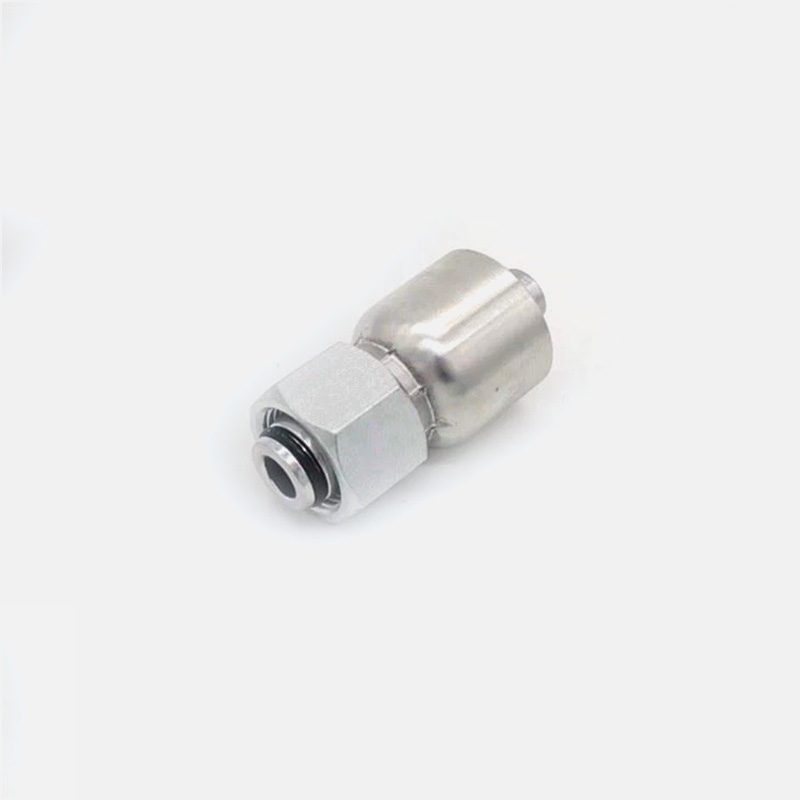

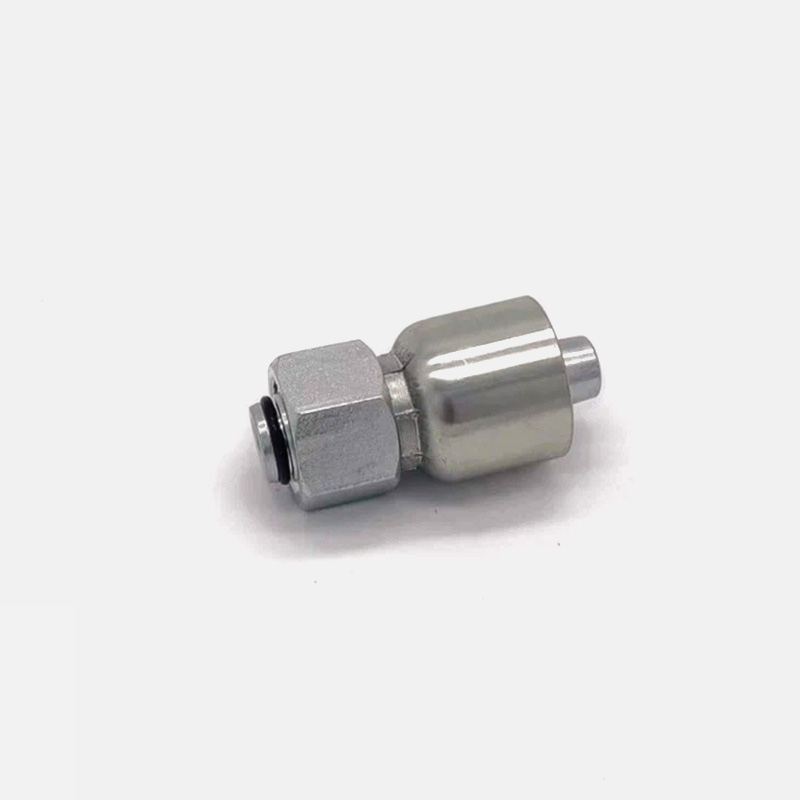

30411RW- DIN L Series Female DKOL Swivel Nut 24 Degree One Piece Hose Fittings Straight female Type
Meet ISO 12151-2/DIN 20066/ISO 8434-4 24-Degree Tube Ends
30411Y Match with Wire Braid Hoses
30412Y Match with Wire Spiral Hoses

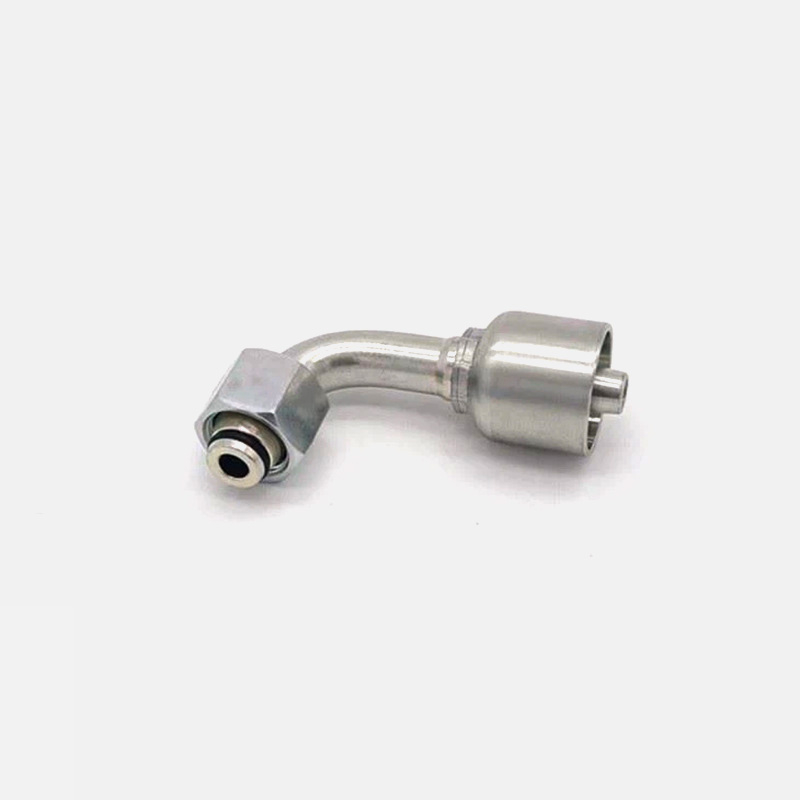

DIN Swivel Nut Elbow One Piece Fittings Size Chart
Stainless Steel and Carbon Steel Material
Tube End Connection Types:
24-degree cone connector
Shapes of Hydraulic Fittings:
Straight
Hose End Connection Type:
One wire braid hoses Two wire braid hose Four wire spiral hose
One-Piece Crimp Couplings are permanently attached fittings, assembled onto the hose with a swaging press.
These couplings have the ferrule already attached to the hose insert. This eliminates the possibility of selecting the wrong ferrule type when fabricating hose assemblies, which can cause failure of the assembly.
One-piece crimp Couplings eliminate the need to ‘skive’ the cover off the hose before attaching the couplings – even for Spiral reinforced hoses. This makes assembly simple, quick, and efficient.
