Bsp Flat Face Fittings

Bsp Flat Face Fittings

The hydraulic hose connectors are manufactured by various standards, including ISO, SAE, DIN, JIS, BS, and NF, to ensure a broad range of applications for hydraulic pressure hoses.
A Zinc coating plus Cr-VI free zinc plating protects carbon steel components from corrosion; certified to meet EU and US standards as well as SAE J516 and DIN EN ISO 12151 requirements. Additionally, these processes are free from hexavalent chromium, enabling an eco-friendly outcome without sacrificing performance.
The zinc-plating tested to EN ISO 9227 yields an of 240 hours without corrosion, before crimping.
British Standard Pipe Parallel (BSPP)
BSP thread-type fittings seal with a 60° angle using either metal-to-metal surfaces or a mixture of metal-to-metal and O-ring components. This sealing process meets the requirements of the BS 5200 and ISO 12151-6 standards.

  • Bsp Flat Face Fittings
  • Bsp Flat Face Fittings
  • Bsp Flat Face Fittings
  • Bsp Flat Face Fittings
Contact Us
  • Specification
    ATTRIBUTES DESCRIPTION
    PRODUCT NAME HYDRAULIC HOSE END FITTINGS, BSP FLAT FACE, FEMALE
    PLACE OF ORIGIN CHINA
    BRAND NAME TIANXIANG

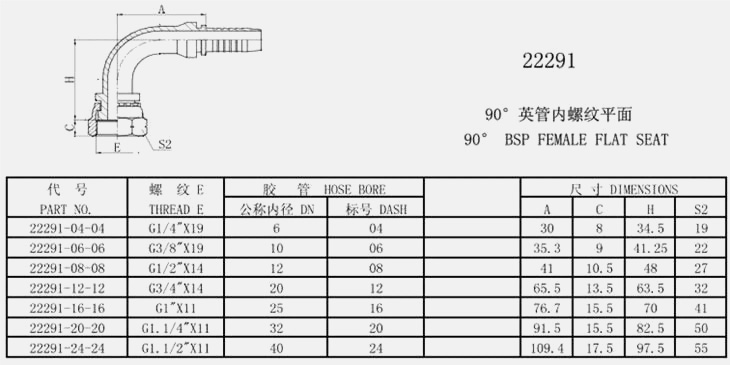

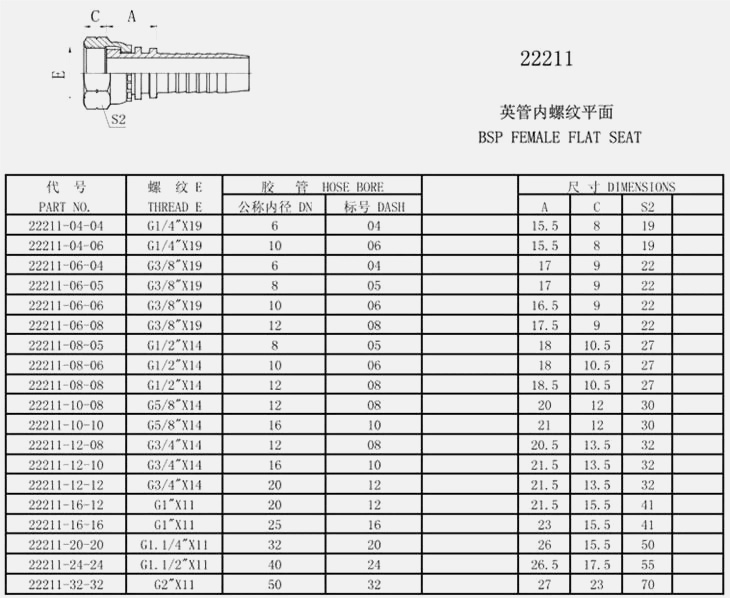

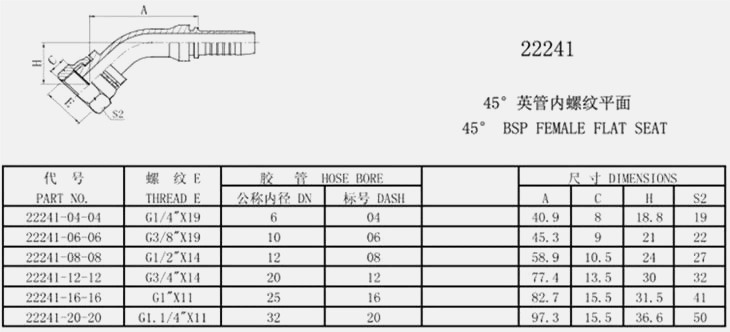

    ITEM NUMBER FOR BRAIDED HOSE 22211(STRAIGHT), 22241(45° ELBOW), 22291(90° ELBOW)
    ITEM NUMBER FOR SPIRAL HOSE 22212(STRAIGHT), 22242(45° ELBOW), 22292(90° ELBOW)
    MATERIAL CARBON STEEL 20#, OR STAINLESS STEEL
    STANDARD BSP
    SURFACE TREATMENT CR+3 ZINC or Zn-Ni
    COLOR YELLOW or WHITE
    THREAD BSPP
    SIZE AS PER THE BELOW SHEET
    PACKAGING DETAILS 60 CARTONS WRAPPED ON A WOODEN PALLET BY NYLON BELTS OR WRAPPED IN A BIG WOODEN CRATE
    CERTIFICATES ISO9001/2008
    FABRICATION TECH FORGED and CNC LATHING
    OEM SERVICE FABRICATED ACCORDING TO YOUR DRAWINGS OR SAMPLES
    LOADING PORT NINGBO/SHANGHAI
    MOQ 500/ITEM FOR BIG SIZE ITEM, 2000 PCS/ITEM FOR SMALL SIZE ITEM
    LEADTIME USUALLY 25 DAYS AROUND AFTER ORDER CONFIRMATION. BUT IT DEPENDS ON ORDER VOLUME
    SUPPLY ABILITY 50000 SETS/ MONTH
