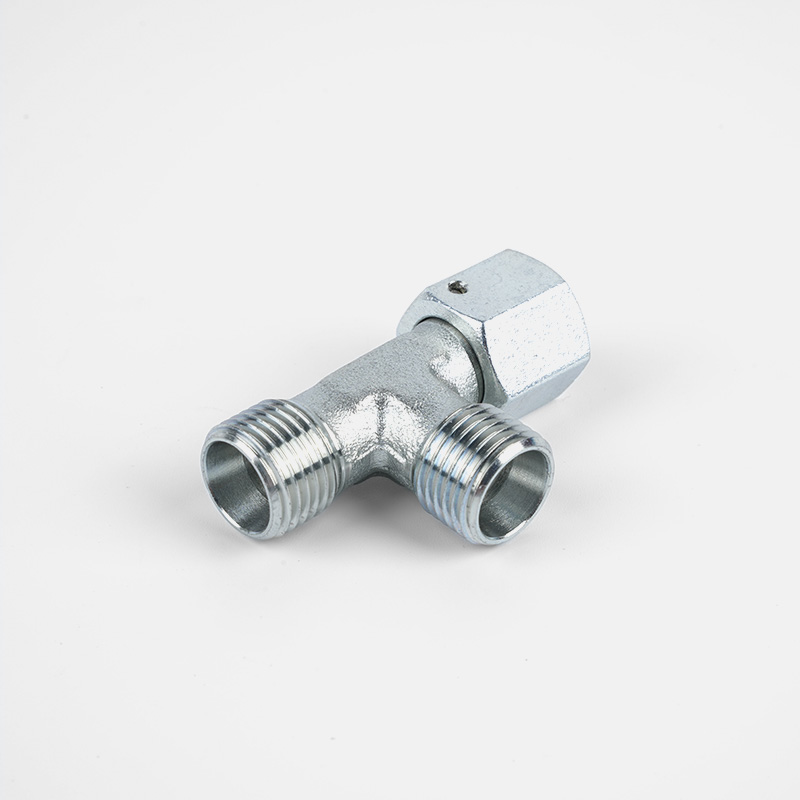

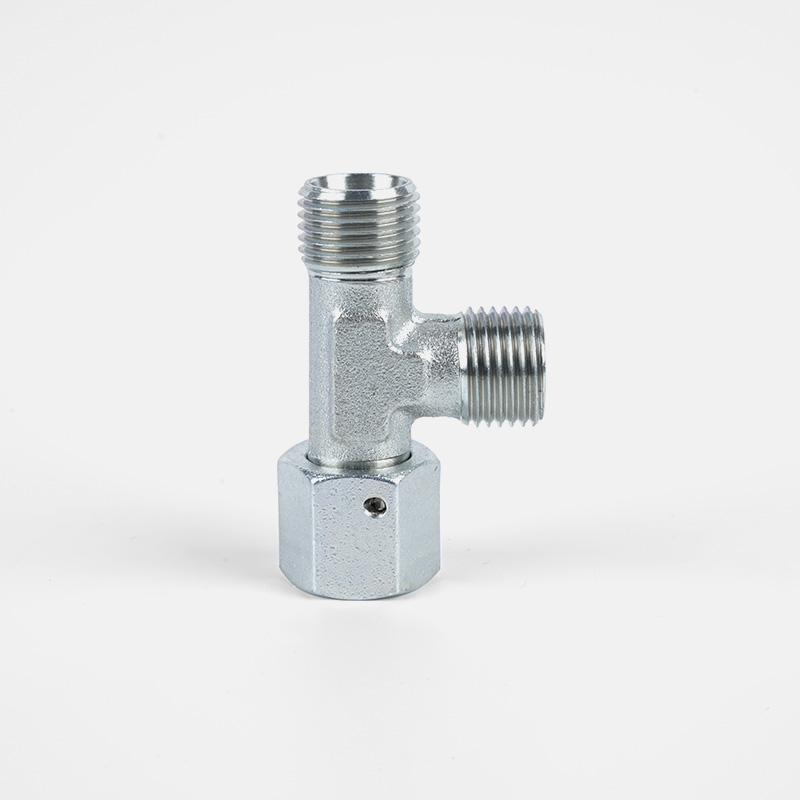

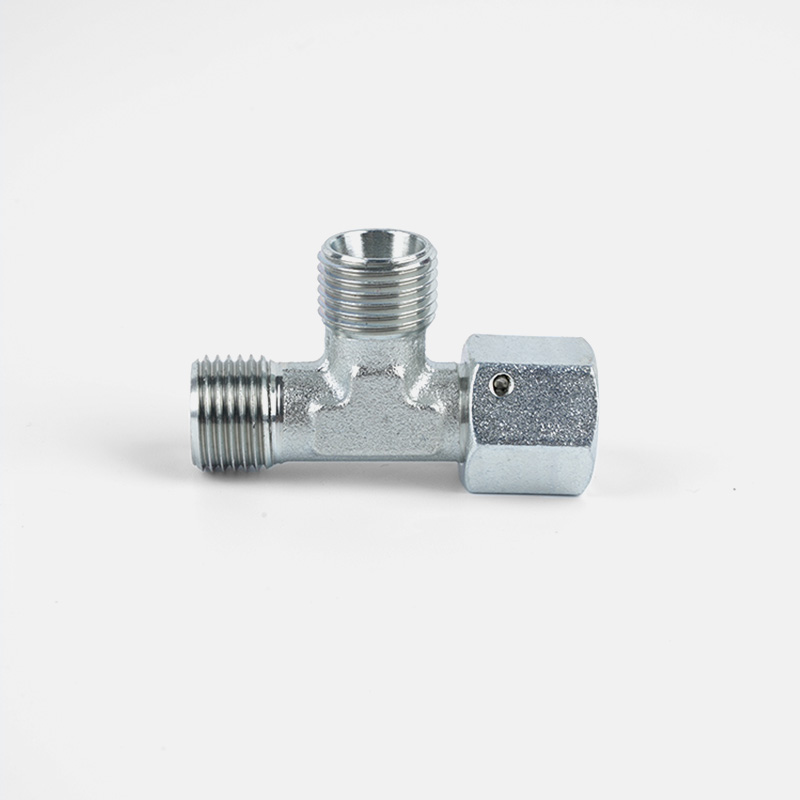

Run Tee Fittings With Swivel Nut- CC/CD

Run Tee Fittings With Swivel Nut- CC/CD

CC/CD metric run tee fitting has three threaded ends, each with a specific metric thread size, one is a female metric thread, and the others are male o-ring ends.
Overall, hydraulic metric tees are a critical component in hydraulic fluid systems and can help to optimize the flow and function of the system.
Feel free to ask any questions about the metric hydraulic hose tee fittings.
  • Run Tee Fittings With Swivel Nut- CC/CD
  • Run Tee Fittings With Swivel Nut- CC/CD
  • Run Tee Fittings With Swivel Nut- CC/CD
Contact Us
  • Specification

    PART

    NO.

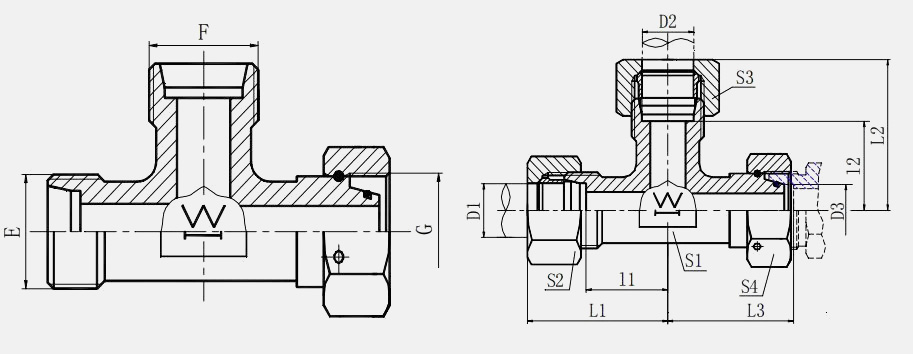

    		 THREAD TUBE O.D. DIMENSIONS
    E , F G D1, D2 D3 L1,L2 L3 S1 S2 ,S3 S4
    CC-12 M12x1.5 M12x1.5 6 6 27 26 12 14 14
    CC-14 M14x1.5 M14x1.5 8 8 29 27.5 12 17 17
    CC-16 M16x1.5 M16x1.5 10 10 30 29 14 19 19
    CC-18 M18x1.5 M18x1.5 12 12 32 29.5 17 22

    22
    CC-22 M22x1.5 M22x1.5 15 15 36 32.5 19 27 27
    CC-26 M26x1.5 M26x1.5 18 18 40 35.5 24 32 32
    CC-30 M30x2.0 M30x2.0 28 28 47 41.5 36 41 41
    CC-36 M36x2.0 M36x2.0 28 28 47 41.5 36 41 41
    CC-45 M45x2.0 M45x2.0 35 35 56 51 41 50 50
    CC-52 M52x2.0 M52x2.0 42 42 63 56 50 60 60
    CD-14 M14x1.5 M14x1.5 6 6 31 27 12 17 17
    CD-16 M16x1.5 M16x1.5 8 8 32 27.5 14 19 19
    CD-18 M18x1.5 M18x1.5 10 10 34 30 17 22 22
    CD-20 M20x1.5 M20x1.5 12 12 38 31 17 24 24
    CD-22 M22x1.5 M22x1.5 14 14 40 35 19 27 27
    CD-24 M24x1.5 M24x1.5 16 16 43 36.5 24 30 30
    CD-30 M30x2.0 M30x2.0 20 20 48 44.5 27 36 36
    CD-36 M36x2.0 M36x2.0 25 25 54 50 36 46 46
    CD-42 M42x2.0 M42x2.0 30 30 35.5 55 41 50 50
    CD-52 M52x2.0 M52x2.0 38 38 72 63 50 60 60
