Metric Standpipe Straight Tube

Metric Standpipe Straight Tube

DIN Metric Insert 1/4" to 1"Metric Straight Standpipe
Material: STEEL (ON REQUEST: STAINLESS STEEL AISI 316)
Salt Spray Test:72 hours, trivalent chromium
Code:50011
DIN 2353
  • Metric Standpipe Straight Tube
Contact Us
  • Specification

    ATTRIBUTES DESCRIPTION
    PRODUCT NAME HYDRAULIC HOSE END FITTINGS, METRIC STANDPIPE STRAIGHT
    PLACE OF ORIGIN CHINA
    BRAND NAME TIANXIANG

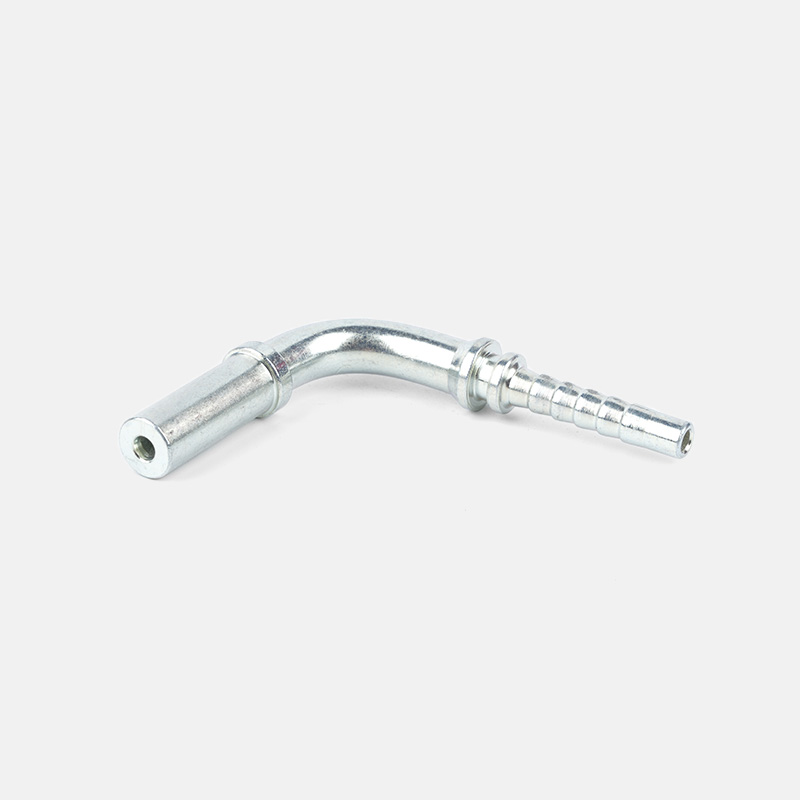

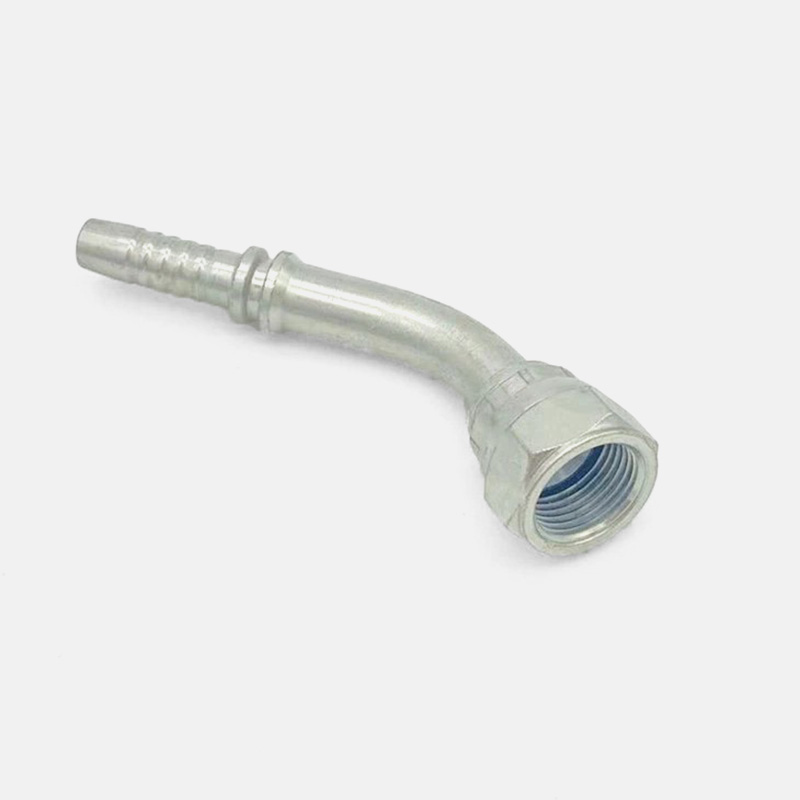

    ITEM NUMBER FOR BRAIDED HOSE 50011(STRAIGHT), 50041(45° ELBOW), 50091(90° ELBOW)
    ITEM NUMBER FOR SPIRAL HOSE 50012(STRAIGHT), 50042(45° ELBOW), 50092(90° ELBOW)
    MATERIAL CARBON STEEL 20#, OR STAINLESS STEEL
    STANDARD DIN2353
    SURFACE TREATMENT CR+3 ZINC or Zn-Ni
    COLOR YELLOW or WHITE
    THREAD METRIC
    SIZE AS PER BELOW SHEET
    PACKAGING DETAILS 60 CARTONS WRAPPED ON A WOODEN PALLET BY NYLON BELTS OR WRAPPED BY A BIG WOODEN CRATE
    CERTIFICATES ISO9001/2008
    FABRICATION TECH FORGED and CNC LATHING
    OEM SERVICE FBRICATED ACCORDING TO YOUR DRAWINGS OR SAMPLES
    LOADING PORT NINGBO/SHANGHAI
    MOQ 500pcs/ITEM FOR BIG SIZE ITEM, 2000 PCS/ITEM FOR SMALL SIZE ITEM
    LEADTIME USUALLY 25 DAYS AROUND AFTER ORDER CONFIRMATION. BUT IT DEPENDS ON ORDER VOLUME
    SUPPLY ABILITY 50000 SETS/ MONTH

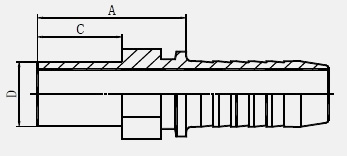

    PART NO.

    TUBE

     O.D.

    		 HOSE BORE DIMENSIONS NOTE
    DN DASH A C
    50011-06-03 6 5 03 28.5 22 Light Type
    50011-06-04 6 6 04 29 22
    50011-10-05 10 8 05 31 23
    50011-10-06 10 10 06 32 23
    50011-12-06 12 10 06 33.5 23
    50011-12-08 12 12 08 33 23
    50011-15-06 15 10 06 35.5 25
    50011-15-08 15 12 08 35.5 25
    50011-18-08 18 12 08 36.5 26
    50011-18-10 18 16 10 41 26
    50011-22-10 22 16 10 44 28
    50011-22-12 22 20 12 44 28
    50011-22-16 22 25 16 46 28
    50011-28-16 28 25 16 47 30
    50011-35-20 35 32 20 56 36
    50111-42-24 42 40 24 62 40
    50011-08-04 8 6 04 31 24 Heavy Type
    50011-08-05 8 8 05 33 24
    50011-08-06 8 10 06 33 24
    50011-10-04 10 6 04 35 26
    50011-12-04 12 6 04 34.5 26
    50011-12-05 12 8 05 35.5 26
    50011-14-06 14 10 06 39.5 29
    50011-14-08 14 12 08 40

    29
    50011-14-12 14 20 12 45.5

    29
    50011-16-08 16 12 08 41 30
    50011-16-10 16 16 10 45.5 30
    50011-20-10 20 16 10 52.5 36
    50011-20-12 20 20 12 52.5 36
    50011-25-12 25 20 12 56 40
    50011-25-16 25 25 16 57 40
    50011-30-16 30 25 16 63 44
    50011-30-20 30 32 20 64 44
    50011-38-16 38 25 16 69 50
    50011-38-20 38 32 20 70 50
