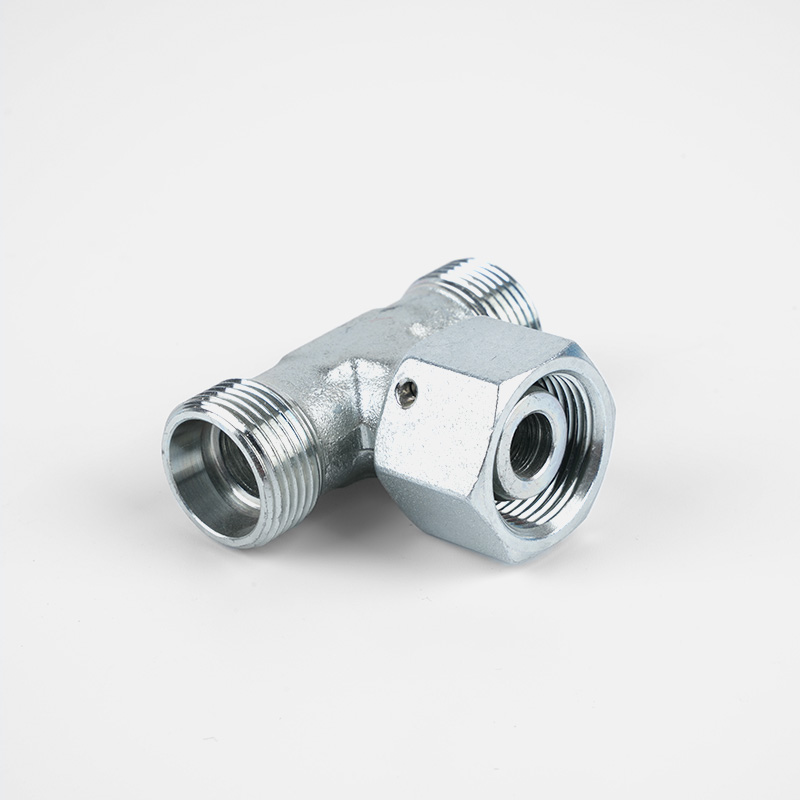

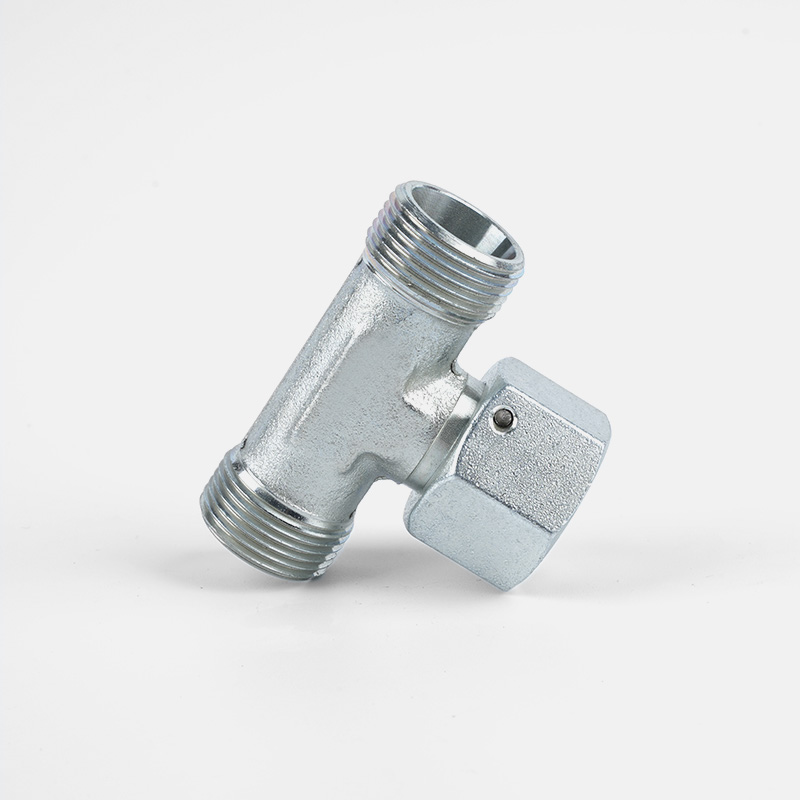

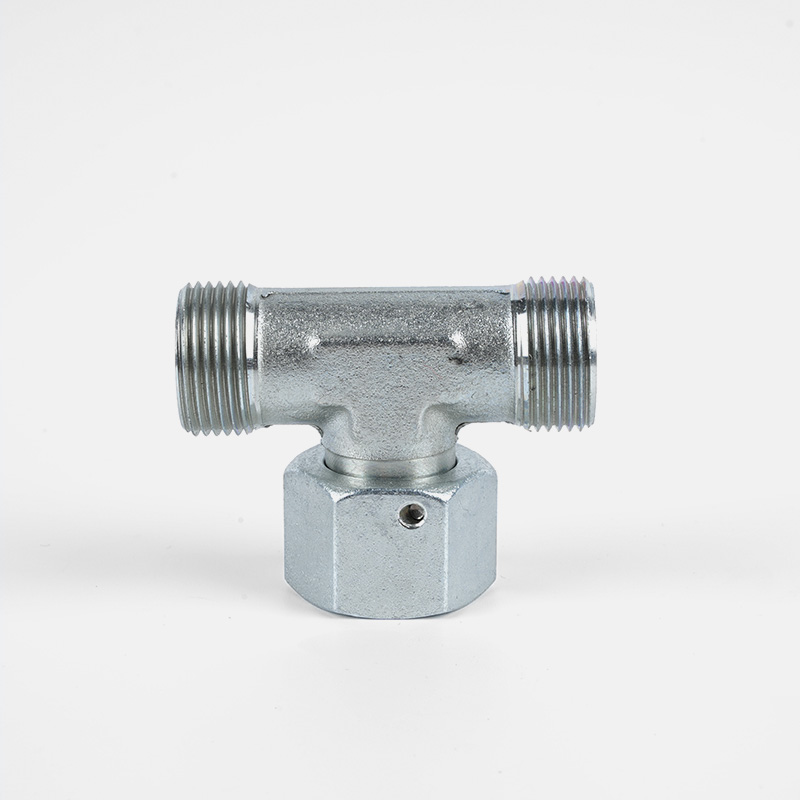

Branch Tee Fittings With Swivel Nut- BC/BD

Branch Tee Fittings With Swivel Nut- BC/BD

BC/BD ,All our hydraulic products are new, unused, and in OEM quality (except when explicitly declared otherwise). Should a particular item not be in stock or not be represented here, please don’t hesitate to contact us. We will immediately try to find an appropriate solution to your given specifications. Moreover, we are constantly expanding our product range to offer you a wide variety of hydraulic components at reasonable prices. TIANXIANG– always a choice at low prices!

  • Branch Tee Fittings With Swivel Nut- BC/BD
  • Branch Tee Fittings With Swivel Nut- BC/BD
  • Branch Tee Fittings With Swivel Nut- BC/BD
Contact Us
  • Specification

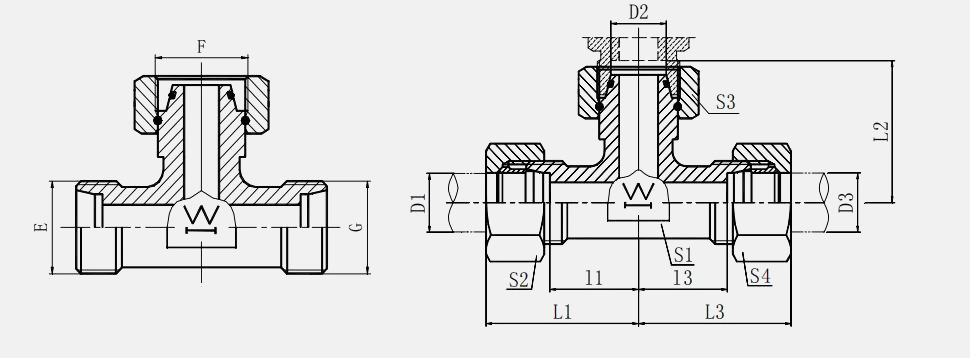

    PART NO. THREAD  TUBE O.D. DIMENSIONS
    E,G F D1,D3 D2 L1,L3 L2 S1 S2,S4 S3
    BC-12 M12x1.5 M12x1.5 6 6 27 26 12 14 14

    BC-14

    		 M14X1.5

    M14x1.5

    		 8 8 29 27.5 12 17 17
    BC-16 M16x1.5 M16x1.5 10 10 30 29 14 19 19
    BC-18 M18x1.5 M18x1.5 12 12 32 29.5 17 22 22
    BC-22 M22x1.5 M22x1.5 15 15 36 32.5 19 27 27
    BC-26 M26x1.5 M26x1.5 18 18 40 35.5 24 32 32
    BC-30 M30X2 M30X2 22 22 44 38.5 27

    36

    		 36
    BC-36 M36X2 M36X2 28 28 47 41.5 36 41 41
    BC-45 M45X2 M45X2 35 35 56 51 41 50 50
    BC-52 M52X2 M52X2 42 42 63 56 50 60 60
    BD-14 M14x1.5 M14x1.5 6 6 31 27 12 17 17

    BD-16

    		 M16x1.5

    M16x1.5

    		 8 8 32 27.5 14 19 19
    BD-18 M18x1.5 M18x1.5 10 10 34 30 17 22 22
    BD-20 M20x1.5 M20x1.5 12 12 38 31 17 24 24
    BD-22 M22x1.5 M22x1.5 14 14 40 35 19 27 27
    BD-24 M24x1.5 M24x1.5 16 16 43 36.5 24 30 30
    BD-30 M30X2 M30X2 20 20 48 44.5 27 36 36
    BD-36 M36X2 M36X2 25 25 54 50 36 46 46
    BD-42 M42X2 M42X2 30 30 62 55 41 50 50
    BD-52 M52X2 M52X2 38 38 72 63 50 60 60
