Bsp Female Stud Fittings 5CB

Bsp Female Stud Fittings 5CB

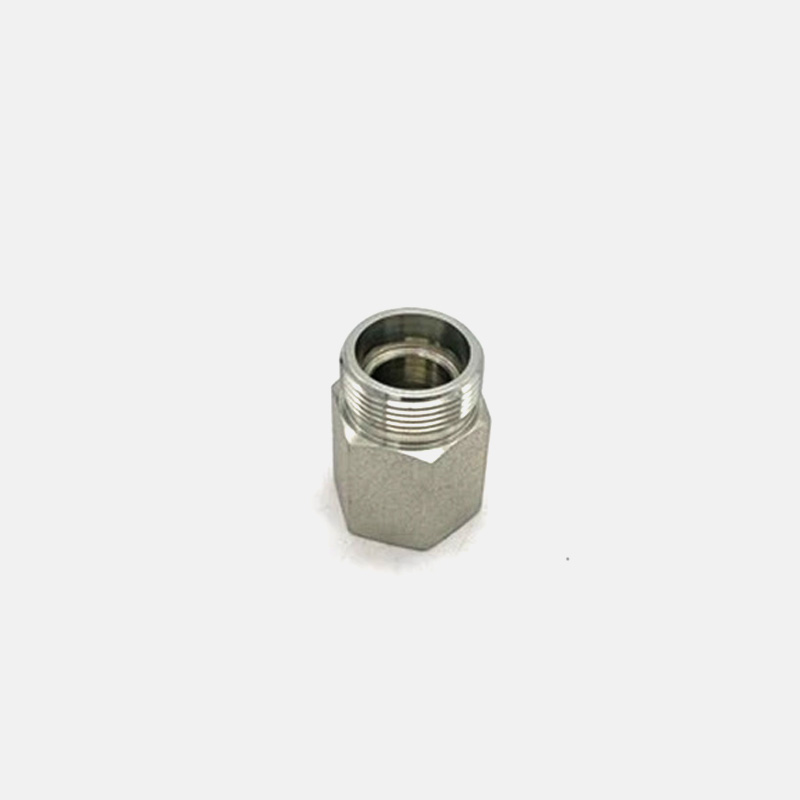

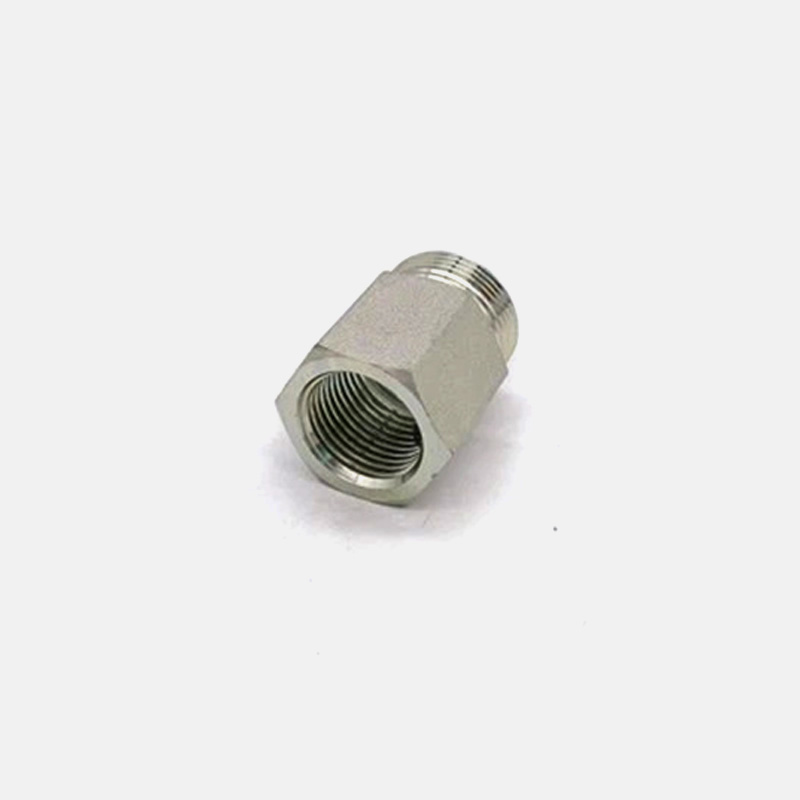

BSP Female Stud Fittings, are an essential component for secure hydraulic connections.
Our fittings are designed with a focus on quality, ensuring reliable performance and long-lasting durability. Constructed from high-quality materials, such as Carbon Steel or as per customer’s requirement, these fittings are engineered to meet your specific needs.
To provide corrosion resistance, our BSP Female Stud Fittings undergo a surface treatment process. They are available with a zinc coating or can be customized to meet your unique requirements. This ensures the fittings can withstand challenging environments and maintain their functionality over time.
In addition to our BSP Female Stud Fittings, we offer a comprehensive range of hydraulic fittings, hose fittings, hydraulic adapters, and other hydraulic accessories. Our products cater to various applications, including specialized fittings for coal mining (steck fittings).

  • Bsp Female Stud Fittings 5CB
  • Bsp Female Stud Fittings 5CB
  • Bsp Female Stud Fittings 5CB
Contact Us
  • Specification

    PART

    NO.

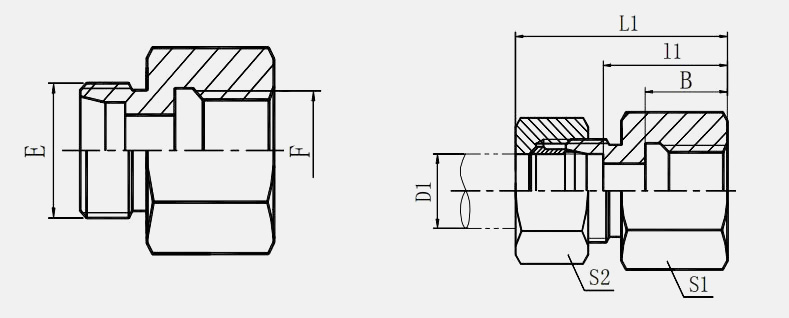

    		 THREAD TUBE O.D DIMENSIONS
    E F D1 B l1 L1 S1 S2
    5CB-12-02 M12x1.5 G1/8"x28 6 12 19 34 14 14
    5CB-12-04 M12x1.5 G1/4"x19 6 16 23 36 19 17
    5CB-14-04 M14x1.5 G1/4"x19 8 17 24 39 19 17
    5CB-14-06 M14x1.5 G3/8"x19 8 17 25 40 24 17
    5CB-14-08 M14x1.5 G1/2"x14 8 20 29 44 27 17
    5CB-16-04 M16x1.5 G1/4"x19 10 17 25 40 19 19
    5CB-16-06 M16x1.5 G3/8"x19 10 17 26 41 24 19
    5CB-16-08 M16x1.5 G1/2"x14 10 20 30 45 27 19
    5CB-18-04 M18x1.5 G1/4"x19 12 17 23 38 19 22
    5CB-18-06 M18x1.5 G3/8"x19 12 17 26 41 24 22
    5CB-18-08 M18x1.5 G1/2"x14 12 20 30 45 27 22
    5CB-22-06 M22x1.5 G3/8"x19 15 17 28 43 24 27
    5CB-22-08 M22x1.5 G1/2"x14 15 20 31 46 27 27
    5CB-26-08 M26x1.5 G1/2"x14 18 20 30.5 47 27 32
    5CB-30-12 M30x2 G3/4"x14 22 22 35.5 52 36 36
    5CB-36-16 M36x2 G1"x11 28 24.5 38 55 41 41
    5CB-45-20 M45x2 G1.1/4"x11 35 26.5 41 63 55 50
    5CB-52-24 M52x2 G1.1/2"x11 42 28.5 42.5 65 60 60
    5DB-14-04 M14x1.5 G1/4"x19 6 17 26 41 19 17
    5DB-16-04 M16x1.5 G1/4"x19 8 17 26 41 19 19
    5DB-18-04 M18x1.5 G3/8"x19 10 17 26.5 43 24 22
    5DB-20-06 M20x1.5 G3/8"x19 12 17 27.5 28 24 24
    5DB-20-08 M20x1.5 G1/2"x14 12 20 30.5 31 24 24
    5DB-22-08 M22x1.5 G1/2"x14 14 20 32 50 30 27
    5DB-24-08 M24x1.5 G1/2"x14 16 20 31.5 50 30 30
    5DB-30-12 M30x2 G3/4"x14 20 22 34.5 56 36 36
    5DB-36-16 M36x2 G1"x11 25 24.5 37.5 62 41 46
    5DB-42-20 M42x2 G1.1/4"x11 26.5 42 69 55 50
    5DB-52-24 M52x2 G1.1/2"x11 28.5 43.5 74 60 60
