Straight Tube Adapters With Swivel Nut

Straight Tube Adapters With Swivel Nut

3C/3D
1. Our Straight Tube Adapters with Swivel Nut offer versatile solutions for various applications.
2. Made from high-quality Stainless Steel and Carbon Steel, ensuring durability and longevity.
3. hydraulic fitting metric thread bite type tube adaptor, also called straight tube adapters with swivel nut. To fit tube sizes 6mm to 42mm outside diameter. we have the L series and S series

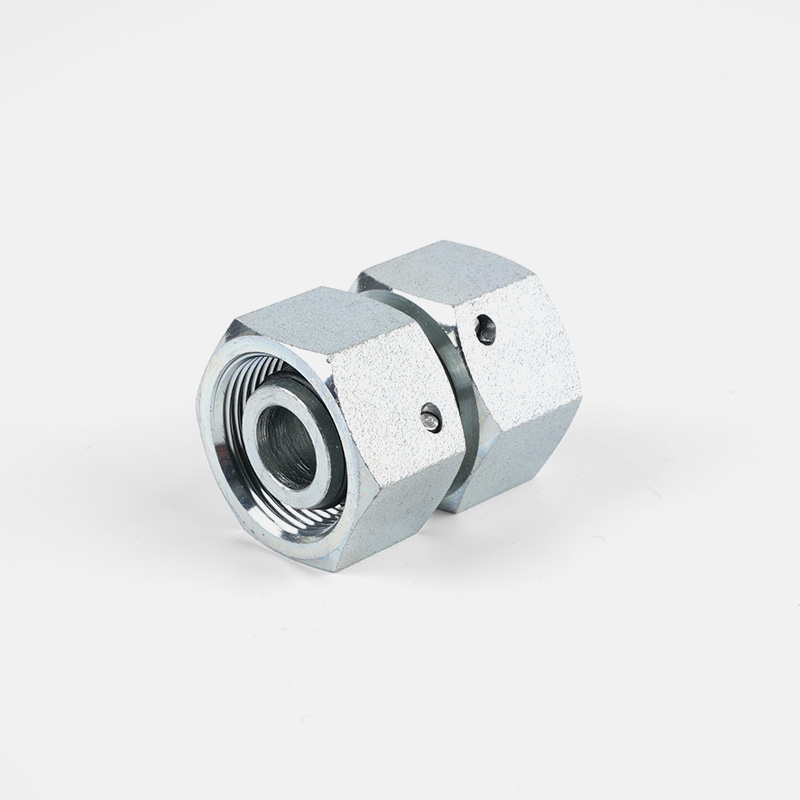

  • Straight Tube Adapters With Swivel Nut

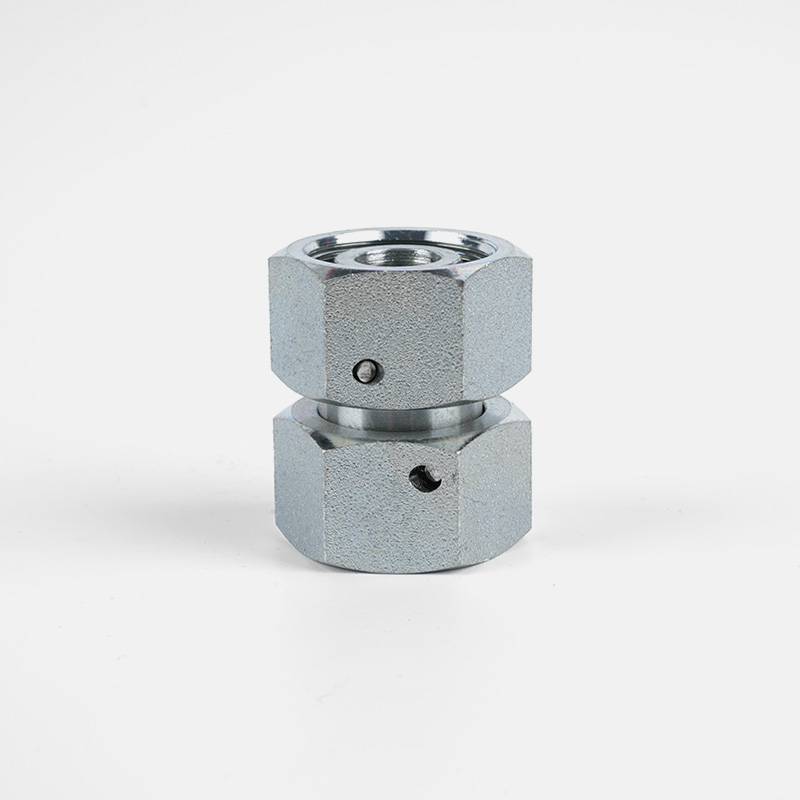

  • Straight Tube Adapters With Swivel Nut

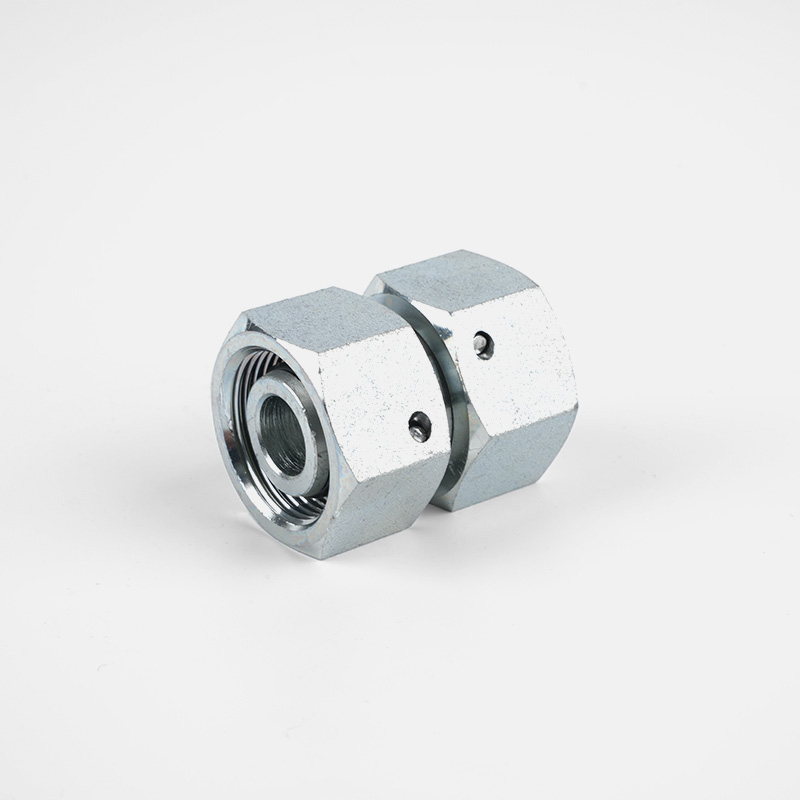

  • Straight Tube Adapters With Swivel Nut
Contact Us
  • Specification
    PART NO. THREAD  TUBE O.D. DIMENSIONS MPa
    E, F D1, D2 L1 L2 S1,S2
    3C-12 M12x1.5 6 33 32 14

    31.5
    L
    3C-14 M14x1.5 8 33 32 17
    3C-16 M16X1.5 10 34 33 19
    3C-18 M18X1.5 12 34 33 22
    3C-22

    M22x1.5

    		 15 39 38 27
    3C-26 M26x1.5 18 41 39 32
    3C-30 M30x2 22 44 42 36

    16
    L
    3C-36 M36x2 28 48 46 46
    3C-45 M45x2 35 52 48 50
    3C-52 M52x2 42 57 52 60
    3D-14 M14x1.5 6 33 32 17

    63
    S
    3D-16 M16x1.5 8 34 33 19
    3D-18 M18x1.5 10 35 33 22
    3D-20 M20x1.5 12 38 36 24
    3D-22 M22x1.5 14 41 39 27
    3D-24 M24x1.5 16 42 39 30

    40 S
    3D-30 M30x2 20 48 44 36
    3D-36 M36x2 25 53 46 46
    3D-42 M42x2 30 62 52 50
    3D-52 M52x2 38 67 52 60 31.5 S
