JIC Male 74° Cone-BJ

JIC Male 74° Cone-BJ

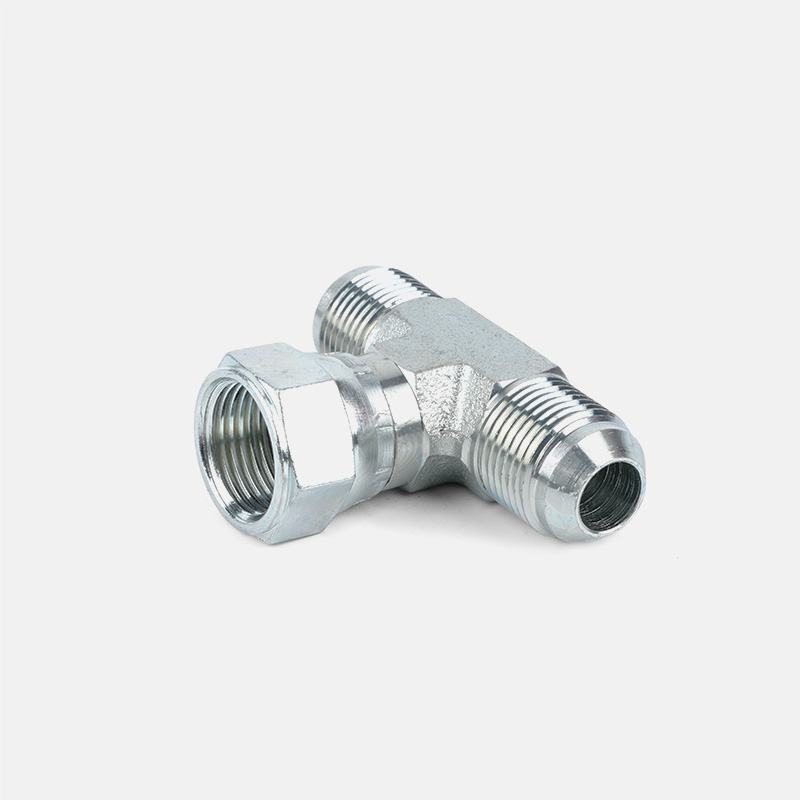

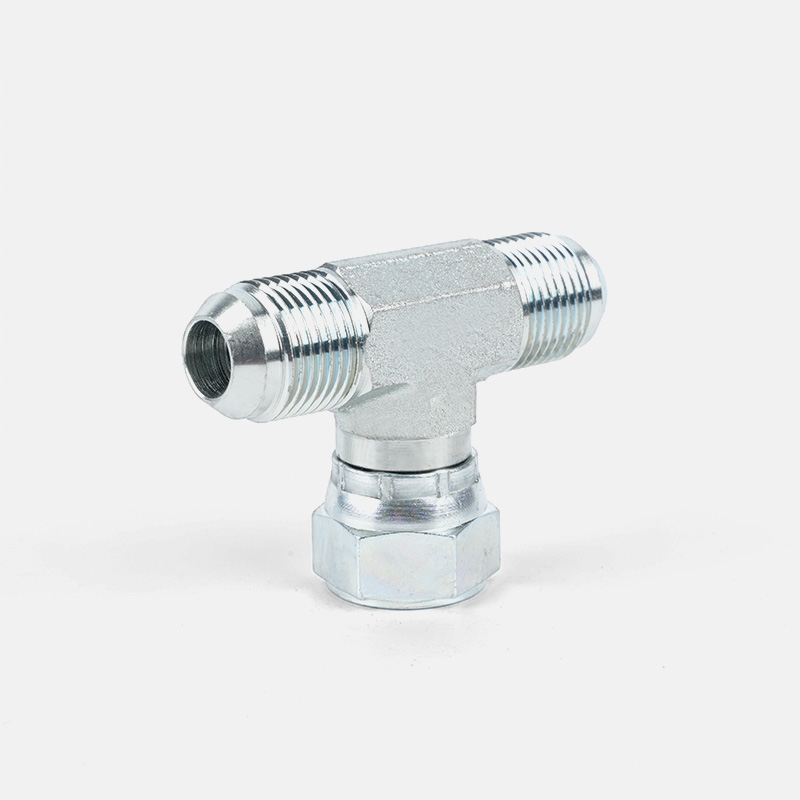

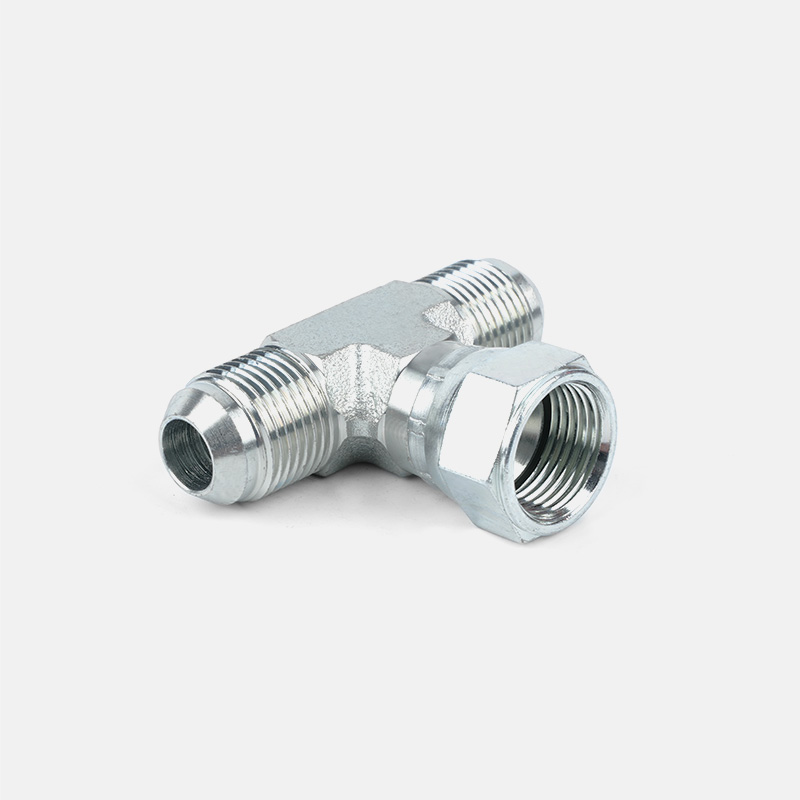

BJ-JIC hydraulic tee fitting is a 3-way hydraulic branch tee adapter with two male JIC threads and one female swivel JIC thread.
The main feature of these fittings is the 37-degree flare of their seating surface. Union tees are 37-degree flare fittings manufactured to SAE J514 standards.
If you want free samples or want to know more information about JIC hydraulic fitting, please contact us.
Features and Benefits:
• High-pressure resistant
• Practicality
• Reliable
• Strong seal
  • JIC Male 74° Cone-BJ
  • JIC Male 74° Cone-BJ
  • JIC Male 74° Cone-BJ
Contact Us
  • Specification

    PART

    NO.

    		 THREAD DIMENSIONS
    E F G A B C S1 S2
    BJ-04 7/16"X20 24.5 9 24.5 11 15
    BJ-05 1/2"X20 26.5 9.5 26.5 14 17
    BJ-06 9/16"X18 26.9 10.5 26.9 14 19
    BJ-08 3/4"X16 32 11 32 19 24
    BJ-10 7/8"X14 37.8 14 37.8 22 27
    BJ-12 1.1/16"X12 44.2 15 44.2 27 32
    BJ-14 1.3/16"X12 47.5 15 47.5 30 36
    BJ-16 1.5/16"X12 49 16 49 33 41
    BJ-20 1.5/8"X12 56 17 56 41 50
    BJ-24 1.7/8"X12 62.5 20 62.5 48 55
    BJ-32 2.1/2"X12 78 24.5 78 63 75
