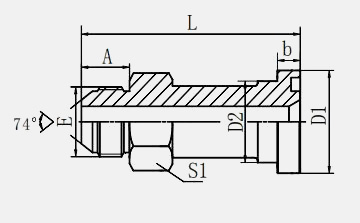

ENGPART NO. | THREAD E | FLANGE SIZE | O-RING | b | D1 | L |
1JFL-08 | 3/4"X16 | 1/2" | O210 | 6.73 | 30.2 | 43.5 |
1JFL-12 | 1.1/16"X16 | 3/4" | O214 | 6.73 | 38.1 | 50.5 |
1JFL-16 | 1.5/16"X12 | 1 | O219 | 8 | 44.4 | 53.4 |
1JFL-20 | 1.5/8"X12 | 1.1/4" | O222 | 8 | 50.8 | 53.1 |
1JFL-24 | 1.7/8"X12 | 1.1/2" | O225 | 8 | 60.3 | 59.2 |
1JFL-32 | 2.1/2"X12 | 2" | O228 | 9.53 | 71.4 | 66.3 |
1JFS-08 | 3/4"X16 | 1/2" | O210 | 7.75 | 31.7 | 47.5 |
1JFS-12 |
1.1/16"X12 | 3/4" | O214 | 8.76 | 41.3 | 56.7 |
1JFS-16 | 1.5/16"X12 | 1" | O219 | 9.53 | 47.6 | 62.8 |
1JFS-20 | 1.5/8"X12 | 1.1/4" | O222 | 10.29 | 54 | 68.9 |
1JFS-24 | 1.7/8"X12 | 1.1/2" | O225 | 12.57 | 63.5 | 76.7 |
