Metric Male Elbow for 2C9

Metric Male Elbow for 2C9

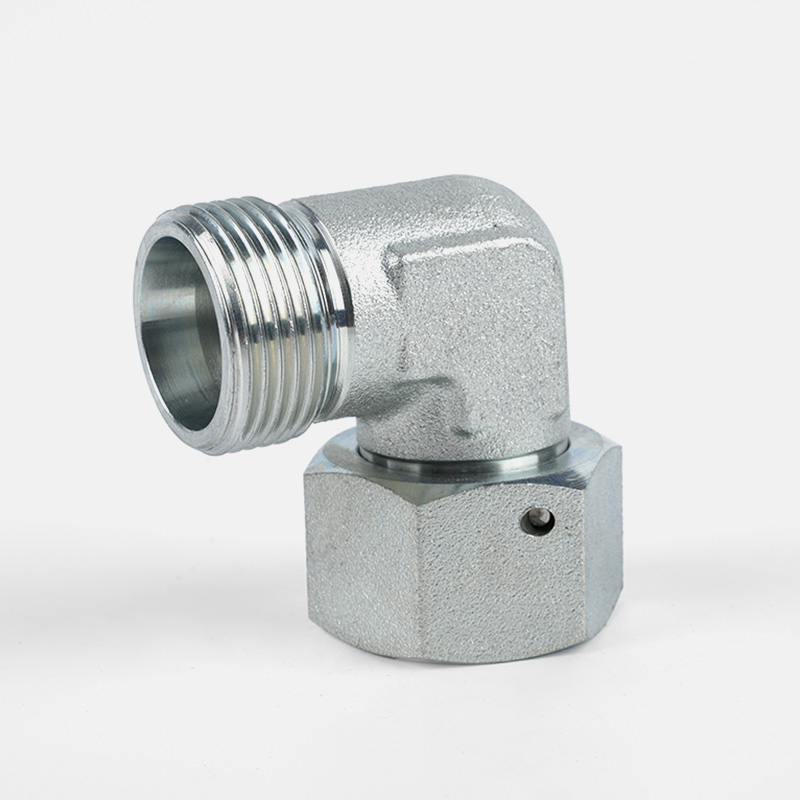

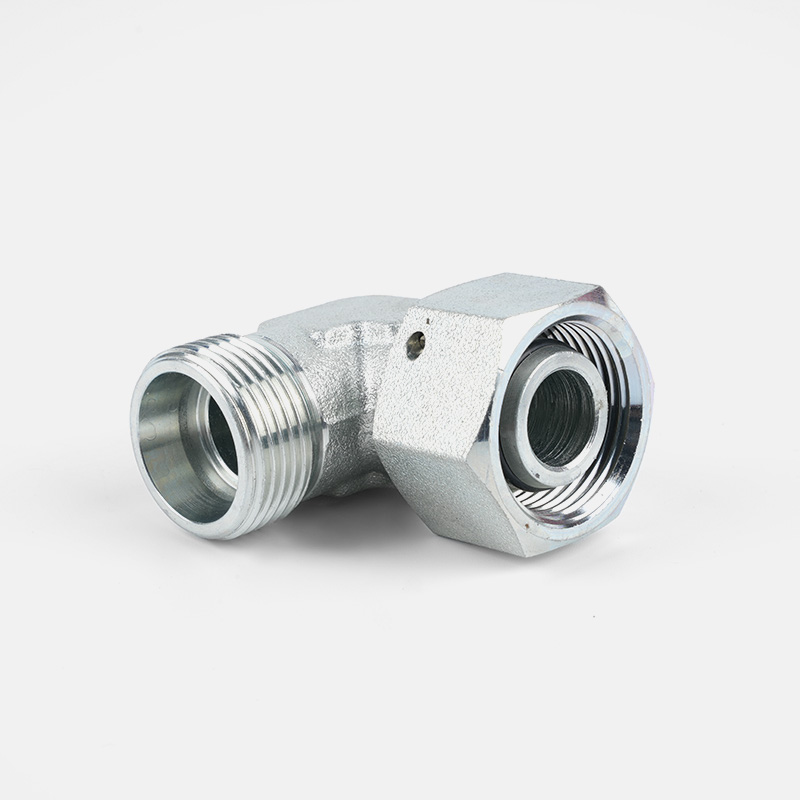

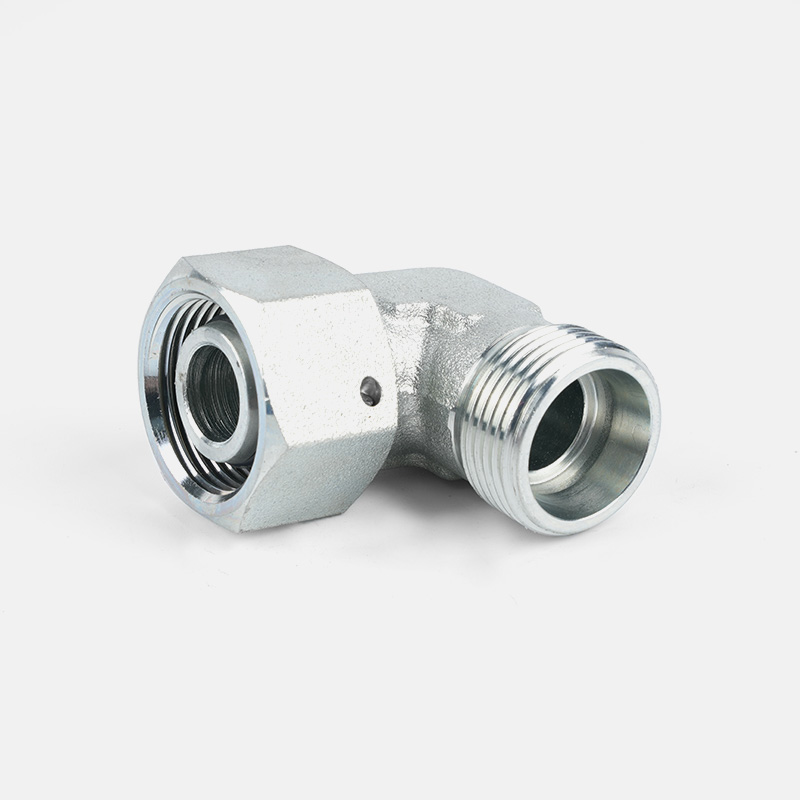

2C9 Fittings Adapters 90 Degree Hydraulic Elbow Pipe Fitting. 2C9/2D9 hydraulic metric compression fitting is a female-to-male elbow adaptor that has female metric thread compression nuts, and sleeves. Our forging technology has a lower cost, but its strength is higher than the normal process method. It has different materials for customer work conditions. Such as steel, stainless steel 304 and 316, and else. We are professional manufacturers of hydraulic fitting and adapters, we could produce the part according to your drawing and sample.
  • Metric Male Elbow for 2C9
  • Metric Male Elbow for 2C9
  • Metric Male Elbow for 2C9
Contact Us
  • Specification

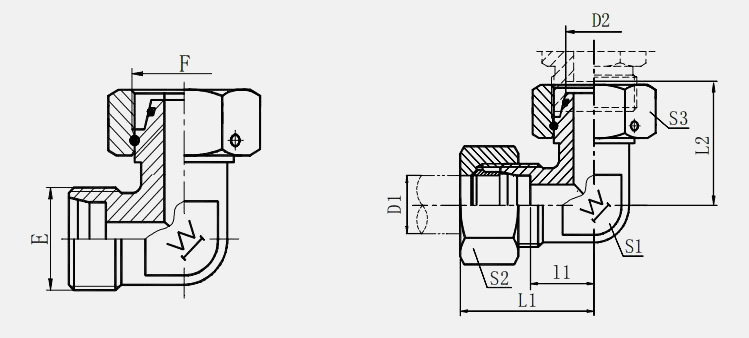

    Part NO. E F D1 D2 L1 L2 S1 S2 S3
    2C9-12 M12X1.5 M12X1.5 6 6 27 26 12 14 14
    2C9-14 M14X1.5 M14X1.5 8 8 29 27.5 12 17 17
    2C9-16 M16X1.5 M16X1.5 10 10 30 29 14 19 19
    2C9-18 M18X1.5 M18X1.5 12 12 32 29.5 17 22 22
    2C9-22 M22X1.5 M22X1.5 15 15 36 32.5 19 27 27
    2C9-26 M26X1.5 M26X1.5 18 18 40 35.5 24 32 32
    2C9-30 M30X2 M30X2 22 22 44 38.5 27 36 36
    2C9-36 M36X2 M36X2 28 28 47 41.5 36 41 41
    2C9-45 M45X2 M45X2 35 35 56 51 41 50 50

    2C9-52 M52X2 M52X2 42 42 63 56 50 60 60
    2D9-14- M14X1.5 M14X1.5 6 6 31 27 12 17 17
    2D9-16 M16X1.5 M16X1.5 8 8 32 27.5 14 19 19
    2D9-18 M18X1.5 M18X1.5 10 10 34 30 17 22

    22
    2D9-20 M20X1.5 M20X1.5 12 12 38 31 17 24 24
