Jic 37 Male Fittings

Jic 37 Male Fittings

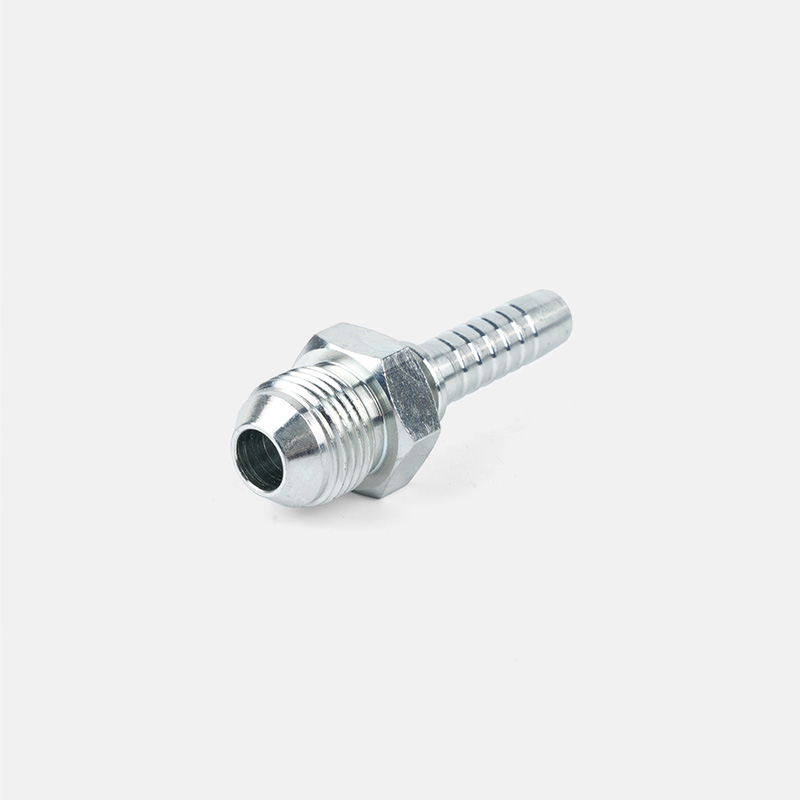

16711-JIC Straight Fittings Description
JIC Straight Fittings (Joint Industry Council) is part of the range of fluid connectors defined by the SAE J514 and MIL-DTL-18866 standards. These fittings are also known as 37 Degree Flare Fitting or Flare Fitting. JIC Fittings comprises three precision machined components with a 37-degree flare seating surface: Body, Sleeve, and Nut. The tube end flared to 74 degrees included angle and held in between the body nose and the sleeve nut that is on top of them, thus resulting in a good leak-proof joint, full flow connection in process tubing. Flare fitting design allows for repeated disassembly and re-assembly with no need to replace any components.
Features
International Standards;
 An effective seal between the fittings and the flared tube;
Good vibration resistance;
High-Pressure Rating.

  • Jic 37 Male Fittings
Contact Us
  • Specification
    ATTRIBUTES DESCRIPTION
    PRODUCT NAME HYDRAULIC HOSE END FITTINGS, JIC 37° BELL MOUTH, FEMALE
    PLACE OF ORIGIN CHINA
    BRAND NAME TIANXIANG
    ITEM NUMBER FOR BRAIDED HOSE 26711(STRAIGHT), 26741(45° ELBOW), 26791(90° ELBOW)
    ITEM NUMBER FOR SPIRAL HOSE 26712(STRAIGHT), 26742(45° ELBOW), 26792(90° ELBOW)
    MATERIAL CARBON STEEL 20#, OR STAINLESS STEEL
    STANDARD SAE J514
    SURFACE TREATMENT CR+3 ZINC or Zn-Ni
    COLOR YELLOW or WHITE
    THREAD JIC

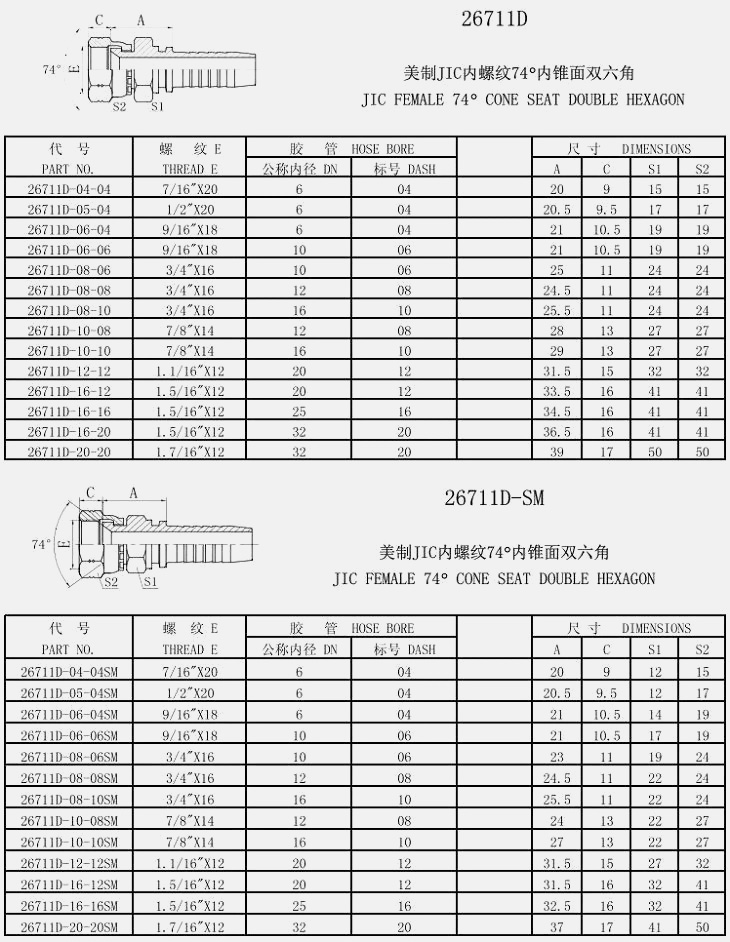

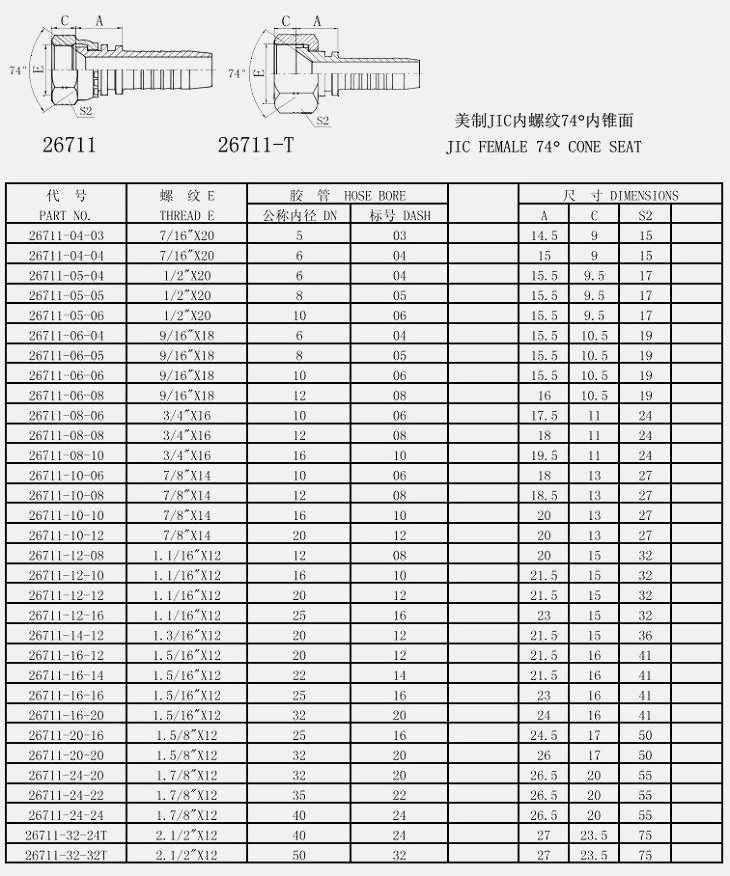

    SIZE AS PER BELOW SHEET
    PACKAGING DETAILS 60 CARTONS WRAPPED ON A WOODEN PALLET BY NYLON BELTS OR WRAPPED BY A BIG WOODEN CRATE
    CERTIFICATES ISO9001/2008
    FABRICATION TECH FORGED and CNC LATHING
    OEM SERVICE FBRICATED ACCORDING TO YOUR DRAWINGS OR SAMPLES
    LOADING PORT NINGBO/SHANGHAI
    MOQ 500pcs/ITEM FOR BIG SIZE ITEM, 2000 PCS/ITEM FOR SMALL SIZE ITEM
    LEADTIME USUALLY 25 DAYS AROUND AFTER ORDER CONFIRMATION. BUT IT DEPENDS ON ORDER VOLUME
    SUPPLY ABILITY 50000 SETS/ MONTH
