"E" size: G1/8"-28 to G1"-11
Standard: EATON

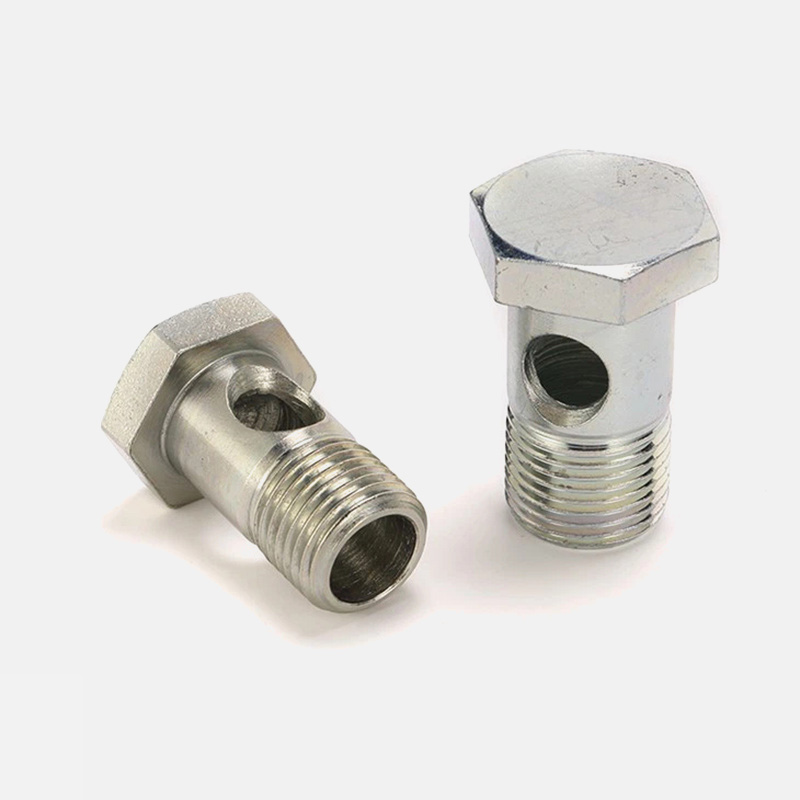

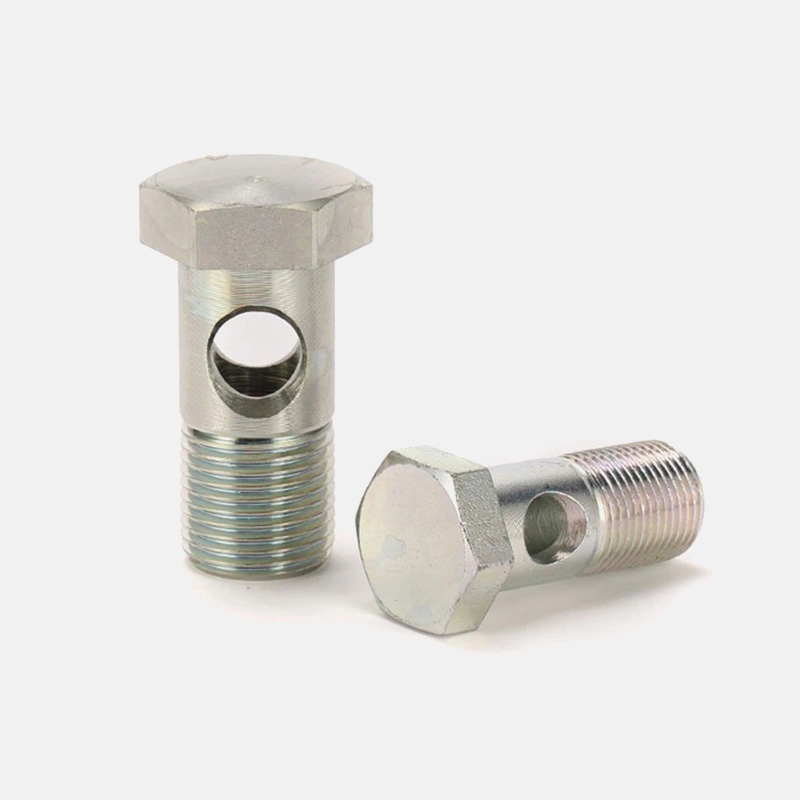

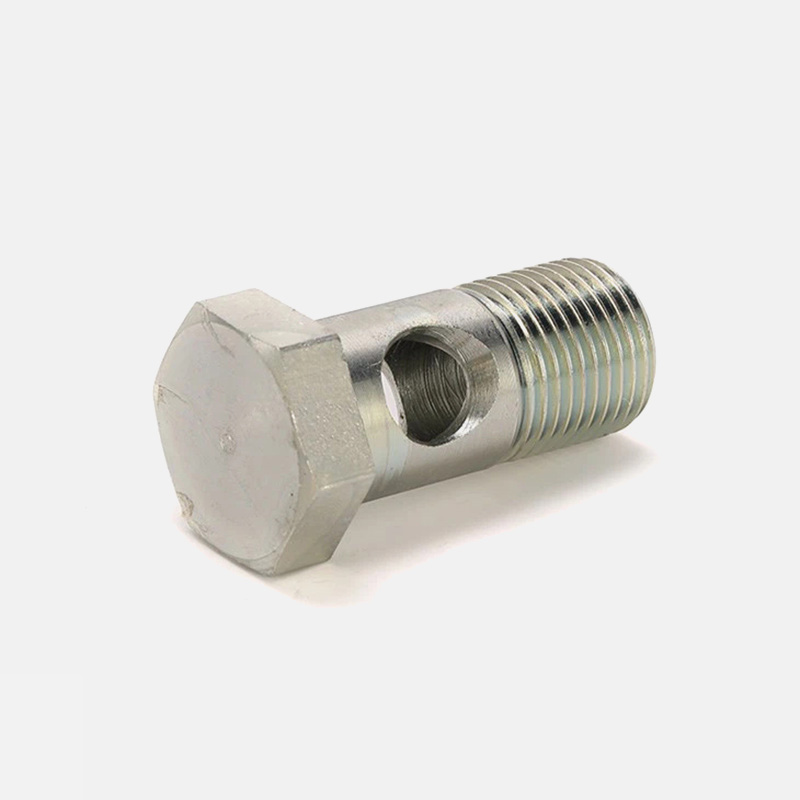

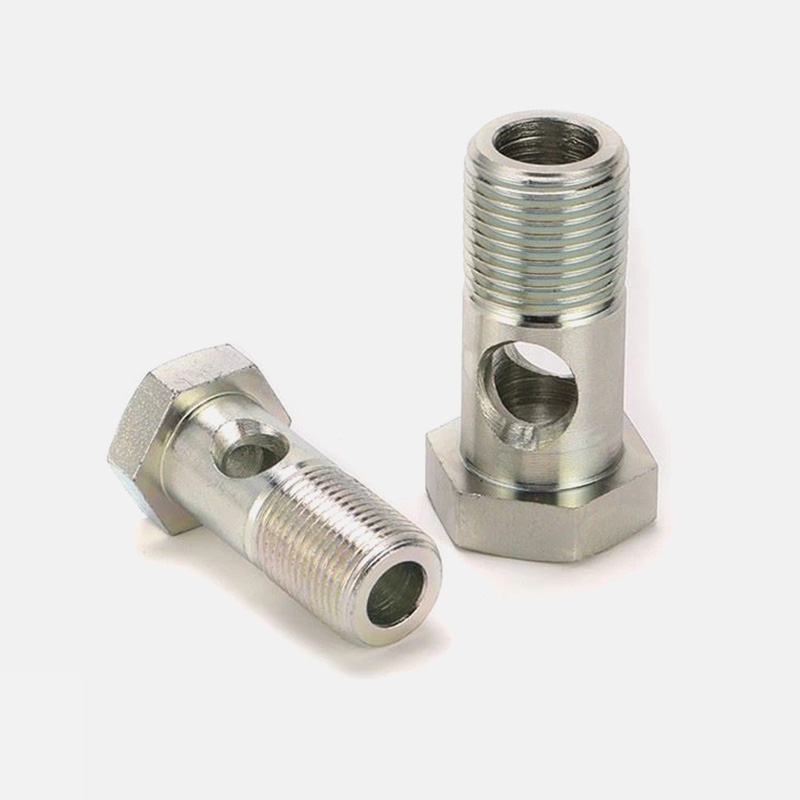

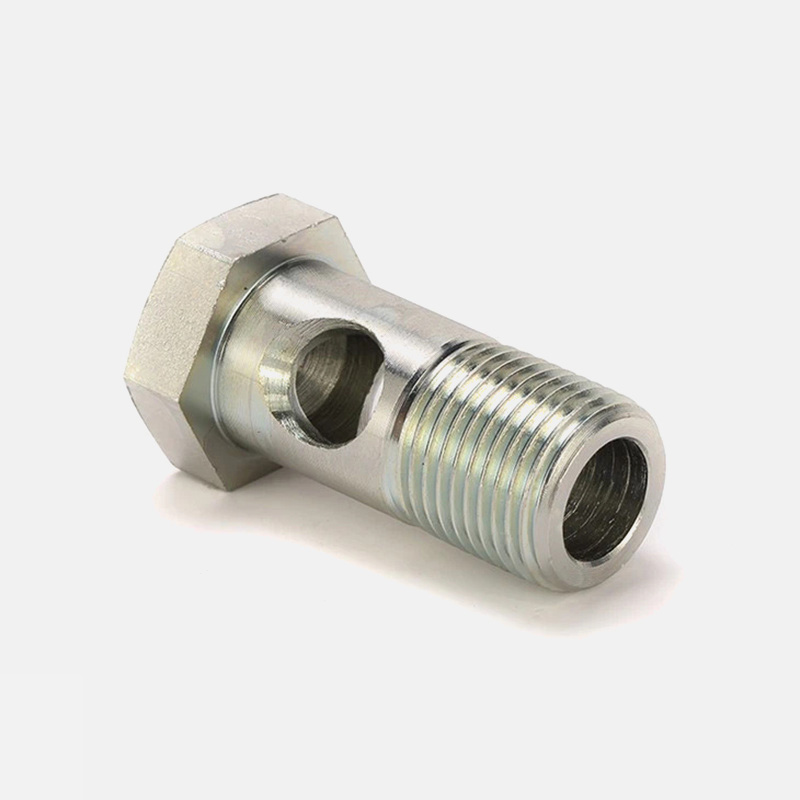

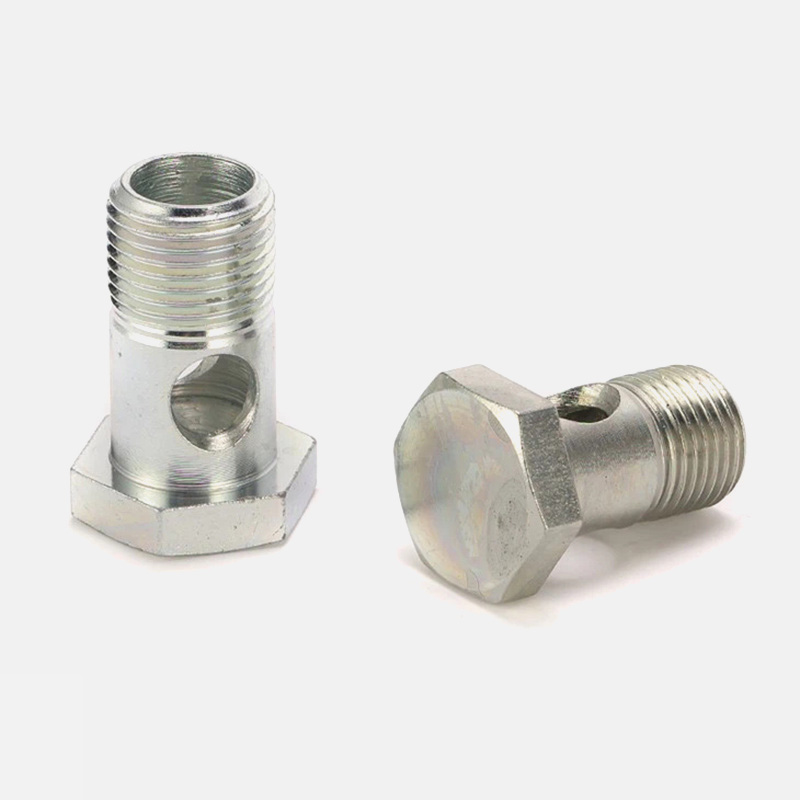

Style : BSP Bolt
Colour: Silver
Code: 720B-XX
Craft: Cold forging
Materials of Construction: Steel.
Surface treatment : 96 hours salt spray test
Original place: Zhejiang China
Brand name: TIANXIANG

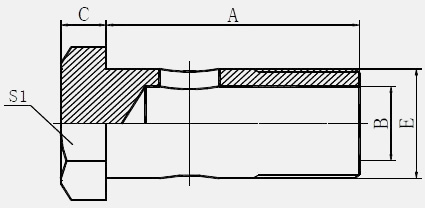

PART NO. | THREAD E | DIMENSIONS | |||
A | B | C | S1 | ||
720B-02 | G1/8"X28 | 29.5 | 4.8 | 4.8 | 14 |
720B-04 | G1/4"X19 | 28.5 | 6 | 6 | 19 |
720B-06 | G3/8"X19 | 38.5 | 9 | 7 | 22 |
720B-08 | G1/2"X14 | 44 | 13 | 8.5 | 27 |
720B-10 | G5/8"X14 | 48.5 | 15 | 10 | 30 |
720B-12 | G3/4"X14 | 56 | 18 | 10 | 32 |
720B-16 | G1"X11 | 68.5 | 22 | 13 | 41 |
