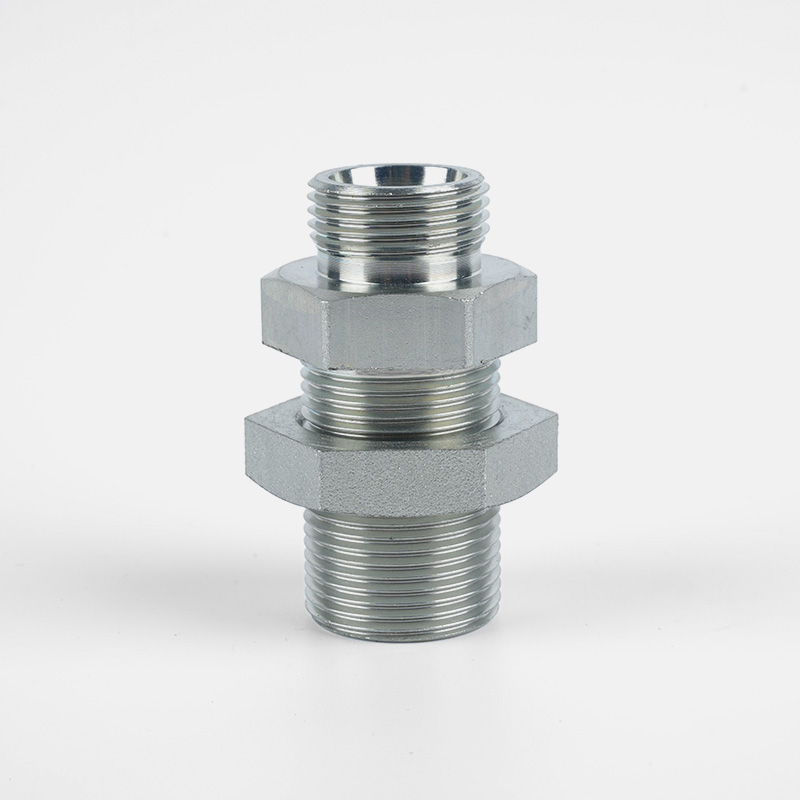

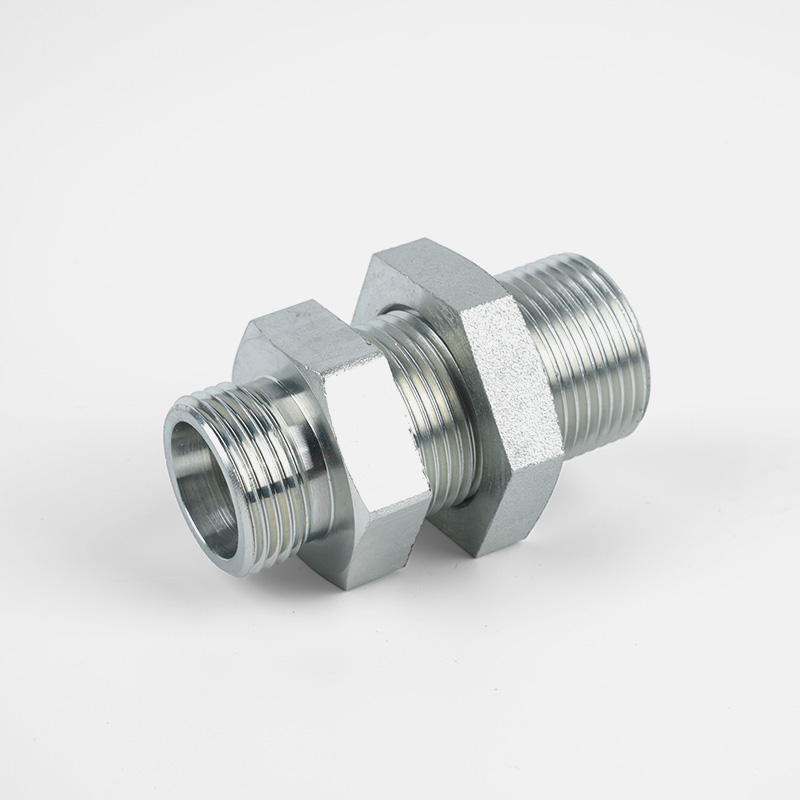

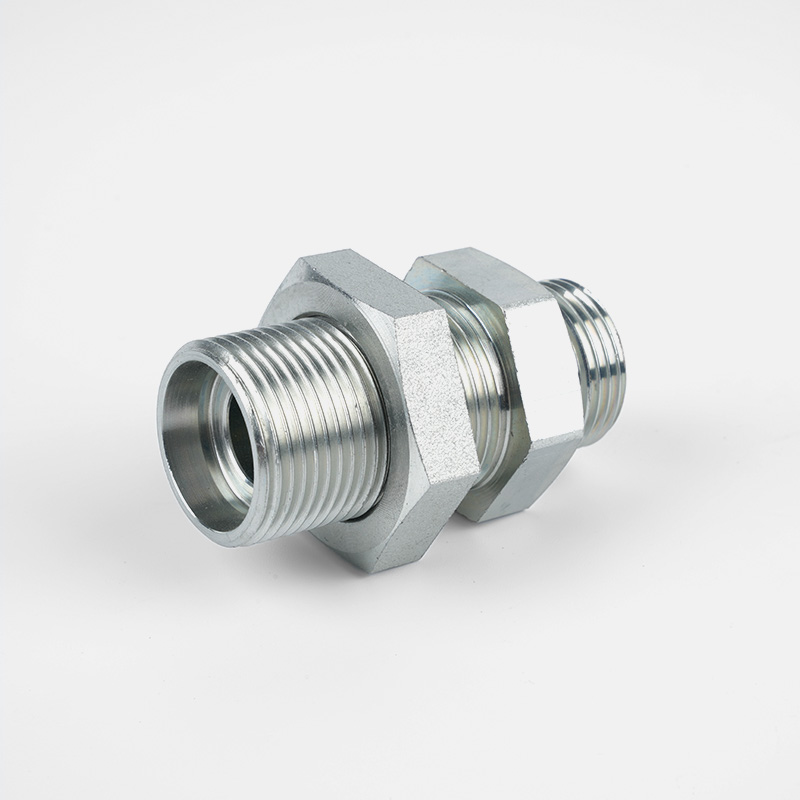

Straight Bulkhead Fitting 6C-LN/6D-LN

Straight Bulkhead Fitting 6C-LN/6D-LN

6C-LN/6D-LN  Straight bulkhead fittings from the FI-GS series allow the straight connection of two metric tubes with identical diameters through a bulkhead wall, secured with a hexagon lock nut. They are available in the Extra-Light, Light, and Heavy Series series as per ISO 8434-1 / DIN 2353 and are suitable for rated pressures up to 800 bar. Designed for bulkhead wall thickness of 16 mm. Tube connectors and cutting ring fittings from the STAUFF Connect series are made of steel with 24° internal taper. For hydraulics.

  • Straight Bulkhead Fitting 6C-LN/6D-LN
  • Straight Bulkhead Fitting 6C-LN/6D-LN
  • Straight Bulkhead Fitting 6C-LN/6D-LN
Contact Us
  • Specification

    PART

     NO.

    		 THREAD  TUBE O.D. DIMENSIONS

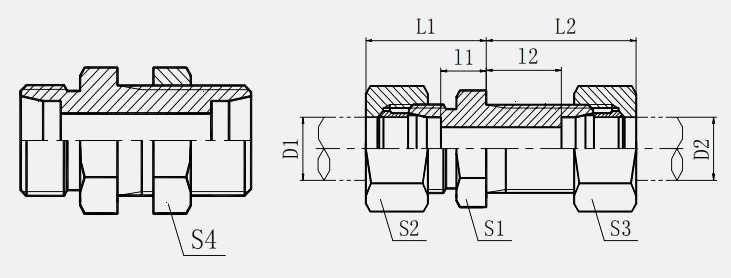

    E F D1  D2 I1 I2 L1 L2 S1 S2 S3 S4
    6C-12 M12x1.5 6 7 27 22 42 17 14 17
    6C-14 M14x1.5 8 8 27 23 42 19 17 19
    6C-16 M16x1.5 10 10 28 25 43 22 19 22
    6C-18 M18x1.5 12 10 29 25 44 24 22 24
    6C-22 M22x1.5 15 12 31 27 46 27 27 30
    6C-26 M26x1.5 18 13.5 32.5 30 49 32 32 36
    6C-30 M30x2 22 16.5 34.5 33 51 36 36 41
    6C-36 M36x2 28 18.5 35.5 35 52 41 41 46
    6C-45 M45X2 35 18.5 36.5 40 58 50 50 55
    6C-52 M52X2 42 19 36 42 59 60 60 65
    6D-14 M14x1.5 6 12 29 27 44 19 17 19
    6D-16 M16x1.5 8 13 29 28 44 22 19 22
    6D-18 M18x1.5 10 14.5 29.5

    31

    		 46 24 22

    24
    6D-20 M20x1.5 12 14.5 30.5 31 47 27 24 27
    6D-22 M22x1.5 14 17 32 35 50 30 27 30
    6D-24 M24x1.5 16 16.5 31.5 35 50 32 30 32
    6D-30 M30x2 20 17.5 33.5 39 55 41 36 41
    6D-36 M36x2 25 20 35 44 59 46 46 46
    6D-42 M42x2 30 21.5 37.5 48 64 50 50 50
    6D-52 M52x2 38 22 37 53 68 65 60 65
