JIC Female 74° Cone Seat

JIC Female 74° Cone Seat

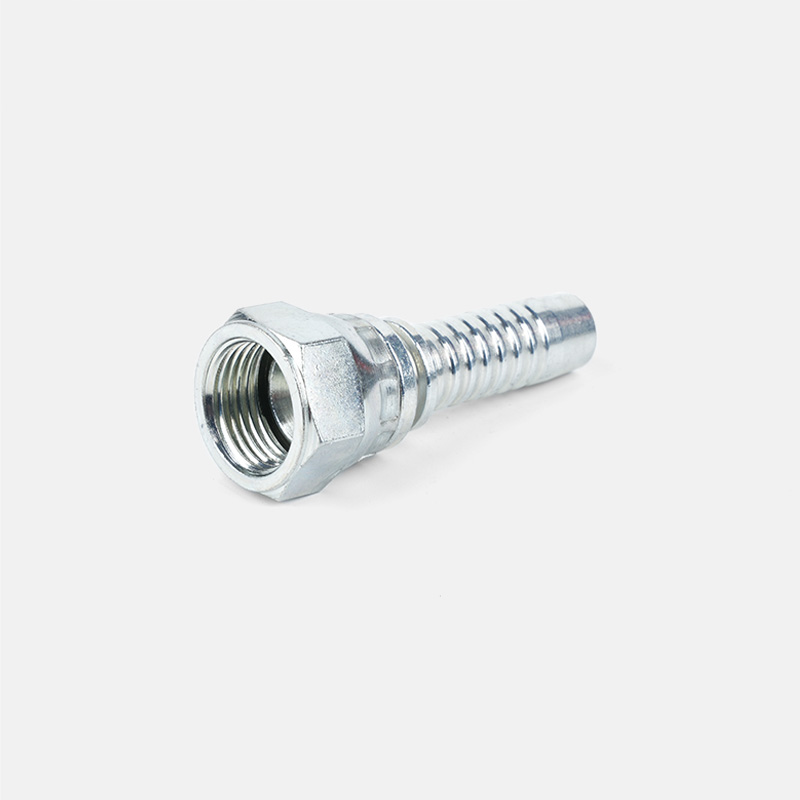

JIC FEMALE 74° CONE SEAT SEAL (26711)
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, and Nickel;
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfields, mines, buildings, transportation, food, and other industries.
Material: Carbon steel and Stainless Steel
Technique: Forged
Type: Hose Fittings
Place of Origin: ZHUJI, China (Mainland)
Brand Name: TIANXIANG
Connection: Thread
Shape: Equal
Head Code: Hexagon
OD Size: 1/4 to 2"  6mm to 51mm
Structure: Straight
Working Pressure: up to 6000psi
Medium: water, oil, gas, acid, base and so on
Special Treatment: ferrule hardness treatment
Nut Treatment: silver planted
Tube Treatment: fully annealed
Inner Cone: mirror polishing processing
Working Temperature: -20 to 200 Celsius degree
  • JIC Female 74° Cone Seat
Contact Us
  • Specification

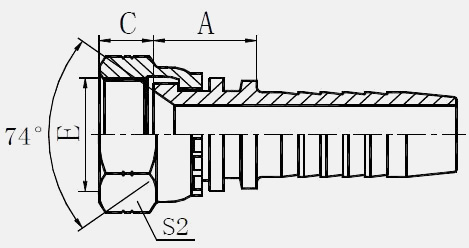

    PART NO. THREAD E HOSE BORE DIMENSIONS
    DN DASH A C S2
    26711-04-03 7/16"X20 5 03 14.5 9 15
    26711-04-04 7/16"X20 6 04 15 9 15
    26711-05-04 1/2"X20 6 04 15.5 9.5 17
    26711-05-05 1/2"X20 8 05 15.5 9.5 17
    26711-05-06 1/2"X20 10 06 15.5 9.5 17
    26711-06-04 9/16"X18 6 04 15.5 10.5 19
    26711-06-05 9/16"X18 8 05 15.5 10.5 19
    26711-06-06 9/16"X18 10 06 15.5 10.5 19
    26711-06-08 9/16"X18 12 08 16 10.5 19
    26711-08-06 3/4"X16 10 06 17.5 11

    24
    26711-08-08 3/4"X16 12 08 18 11 24
    26711-08-10 3/4"X16 16 10 19.5 11 24
    26711-10-08 7/8"X14 12 08 18.5 13 27
    26711-10-10 7/8"X14 16 10 20 13 27
    26711-10-12 7/8"X14 20 12 20 13 27
    26711-12-08T 1.1/16"X12 12 08 19 15 32
    26711-12-10 1.1/16"X12 16 10 21.5 15 32
    26711-12-12 1.1/16"X12 20 12 21.5 15 32
    26711-12-16 1.1/16"X12 25 16 23 15 32
    26711-14-12 1.3/16"X12 20 12 21.5 15 36
    26711-16-12T 1.5/16"X12 20 12 18.5 16 41
    26711-16-16 1.5/16"X12 25 16 23 16 41
    26711-16-20 1.5/16"X12 32 20 24 16 41
    26711-20-16T 1.5/8"X12 25 16 23 17 50
    26711-20-20W 1.5/8"X12 32 20 26 17 50
    26711-24-20W 1.7/8"X12 32 20 26.5 20 55
    26711-24-24W 1.7/8"x12 40 24 26.5 20 55
    26711-32-24T 2.1/2"X12 40 24 27 23.5 75
    26711-32-32T 2.1/2"X12 50 32 27 23.5 75
