Aluminum camlock couplings or aluminum cam & groove couplings are an economical and durable option for quick connect/disconnect coupling for PVC suction hoses, industrial hoses, and PVC lay flat hoses used in agricultural irrigation, water transfer of construction and industries, and chemical & petroleum delivery. Its working temperature ranges from -150°F to +250°F (-101°C to 121°C) and working pressure doesn't surpass 250 psi at ambient temperature.
Aluminum camlock fittings come in a variety of sizes ranging from 1/2" to 8" according to MIL-C-27487/ISO A-A-59326. 1/2" through 4" and 6" parts are interchangeable, while 5" and 8" through 12" are not interchangeable for no standards are established for these specifications. Our aluminum quick connect/disconnect couplings are manufactured by gravity casting.
Eight different types and sizes of aluminum camlock couplings on the gray background.

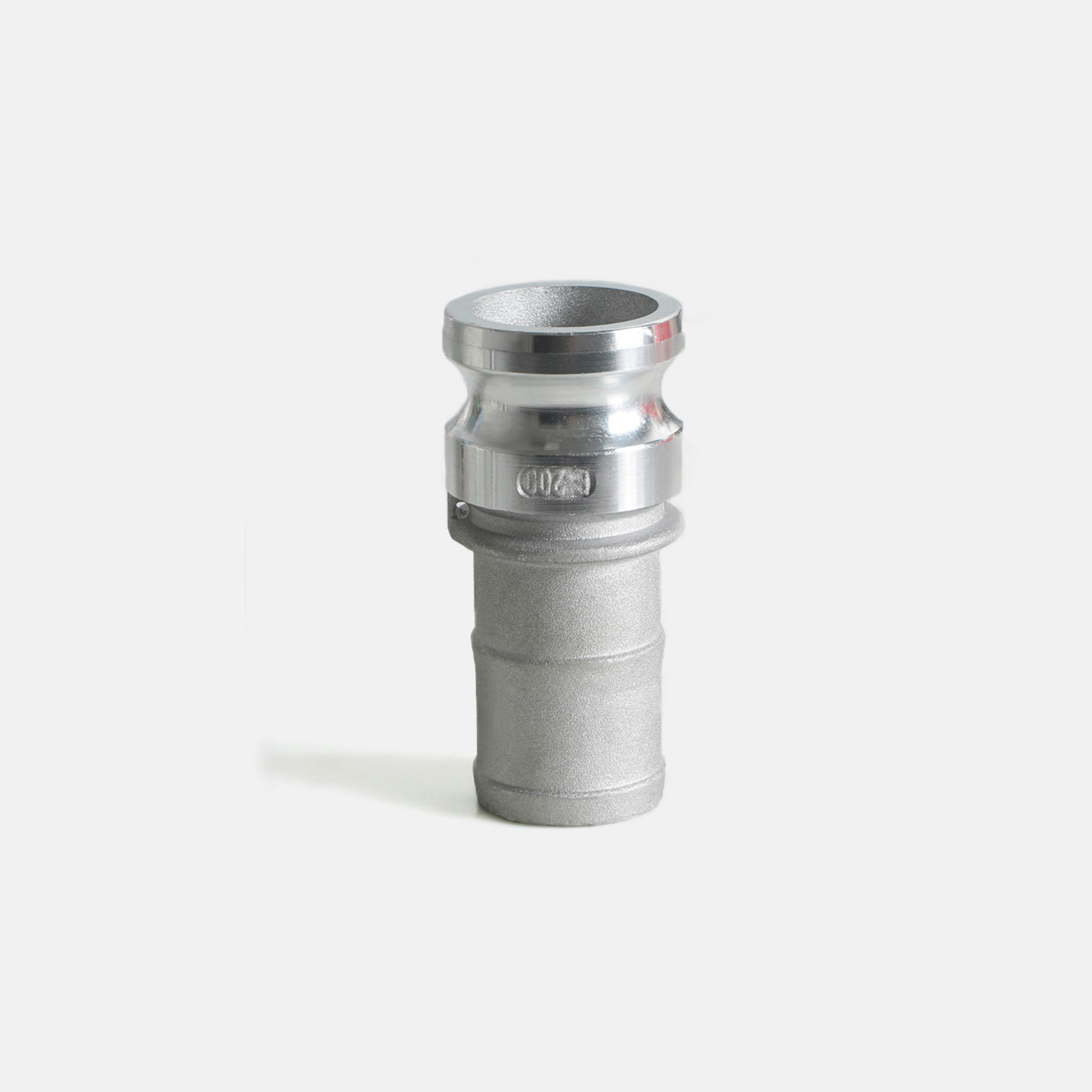

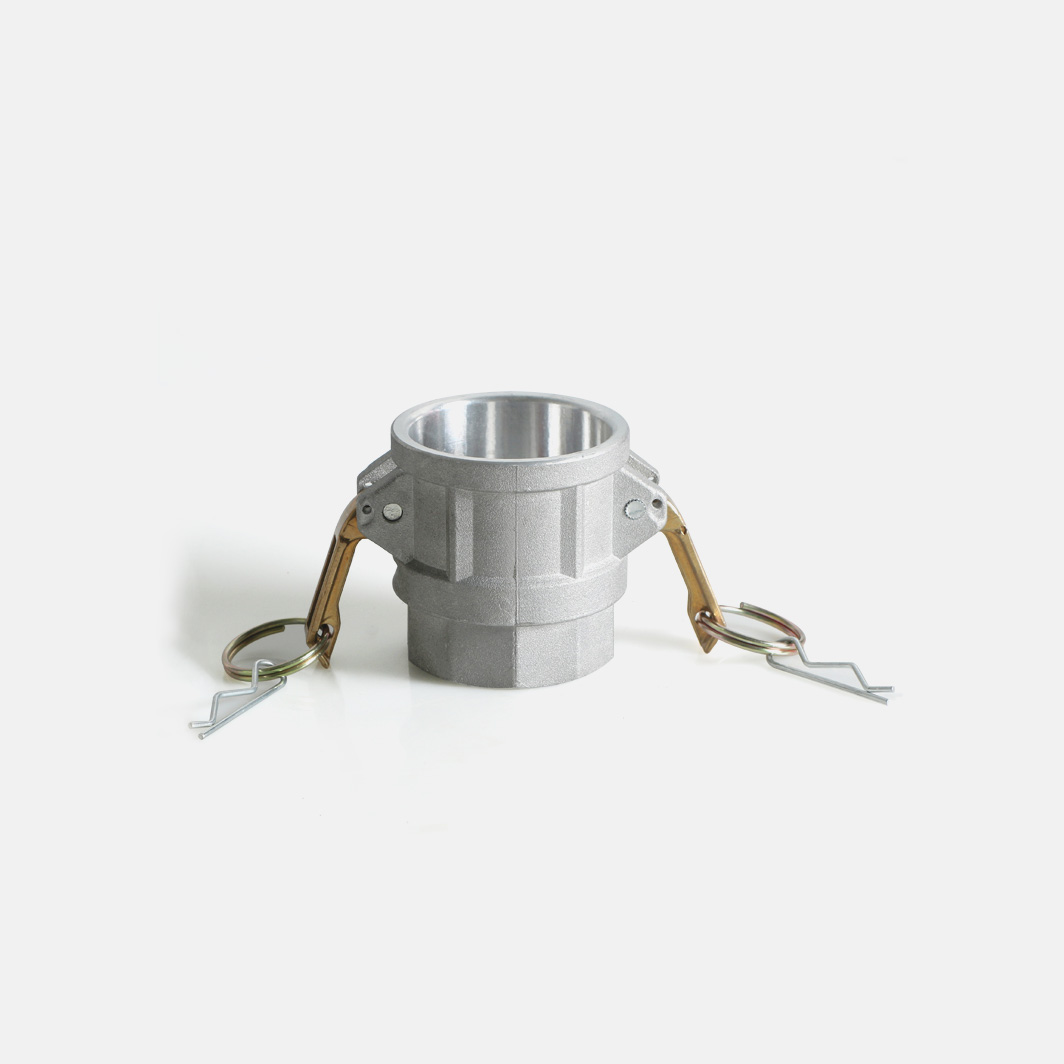

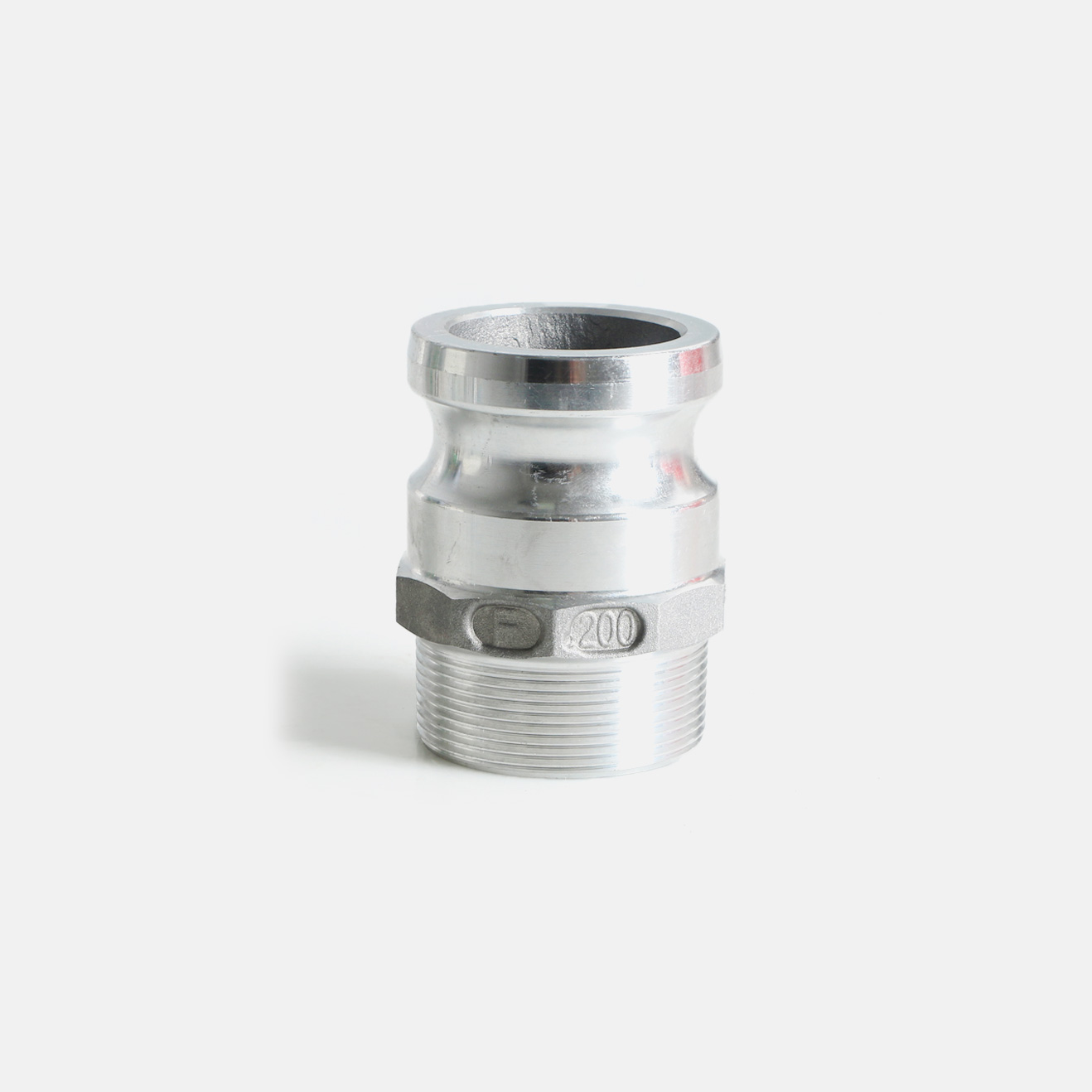

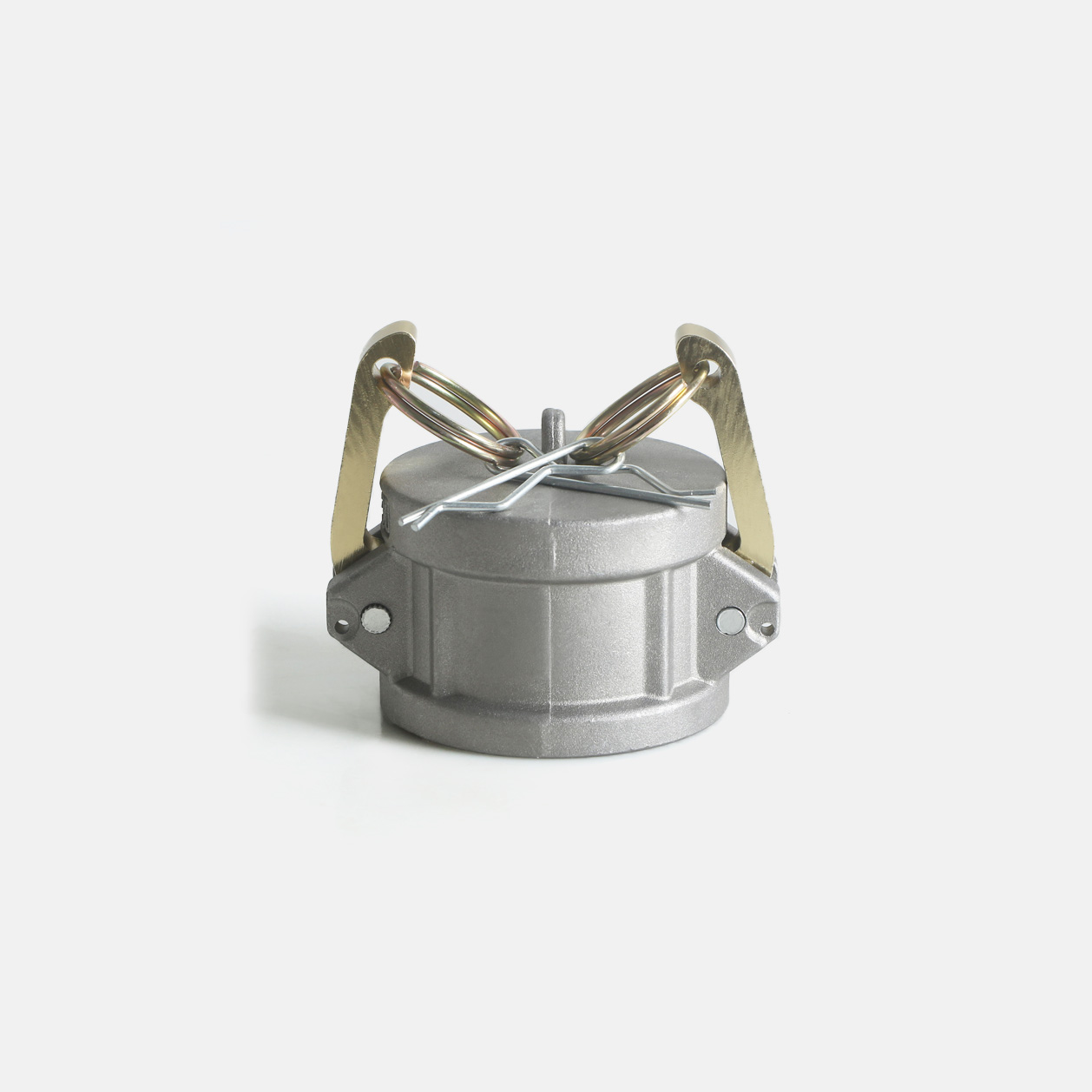

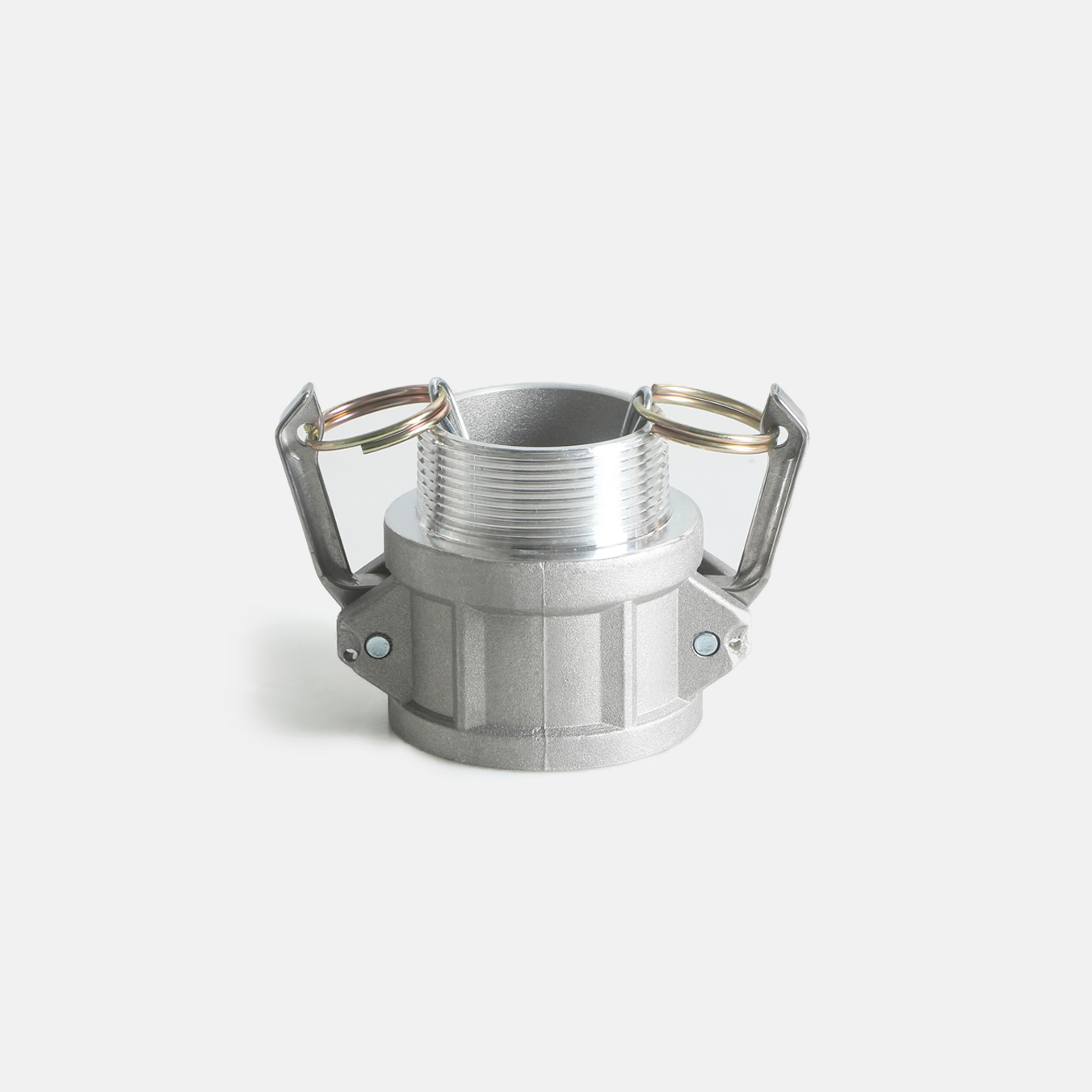

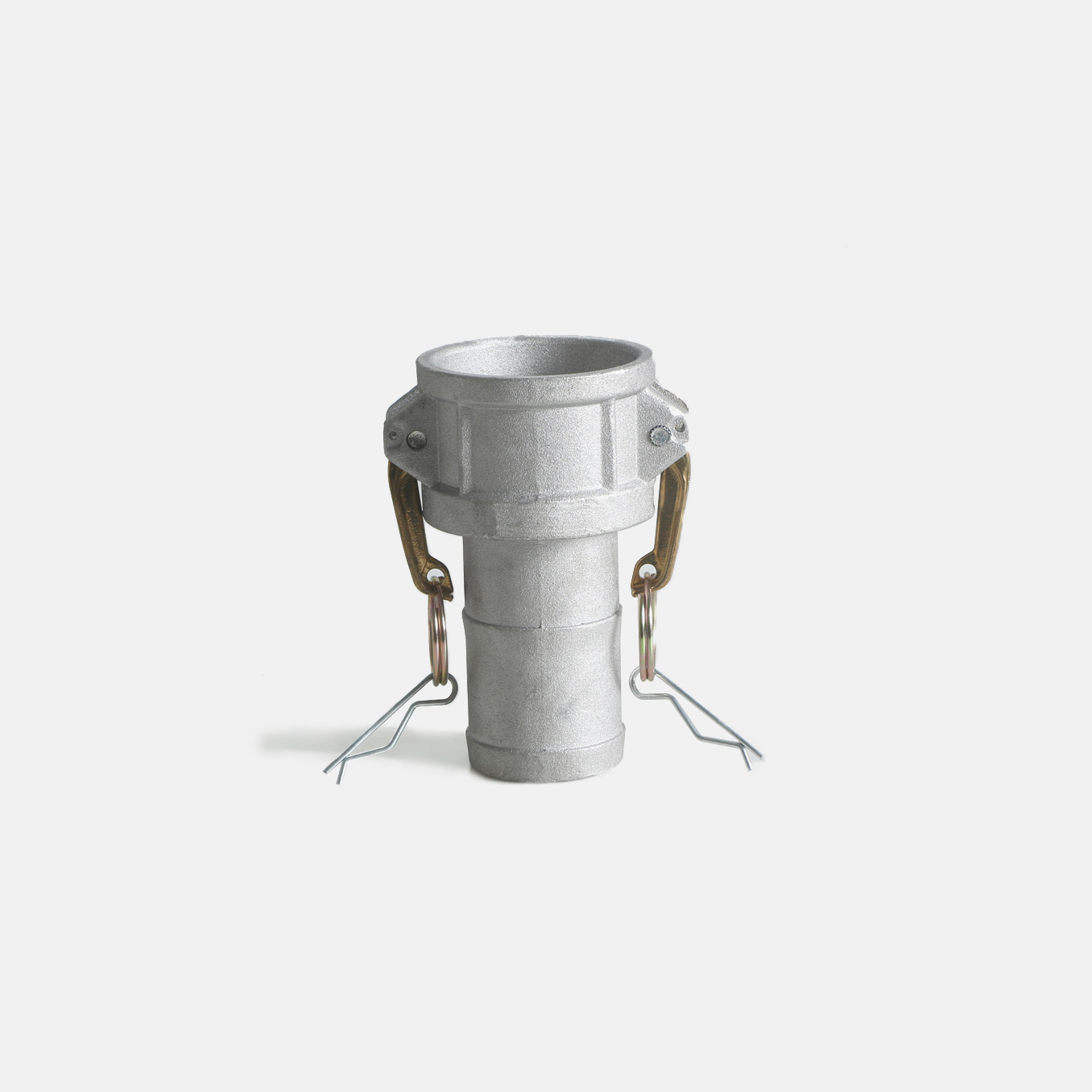

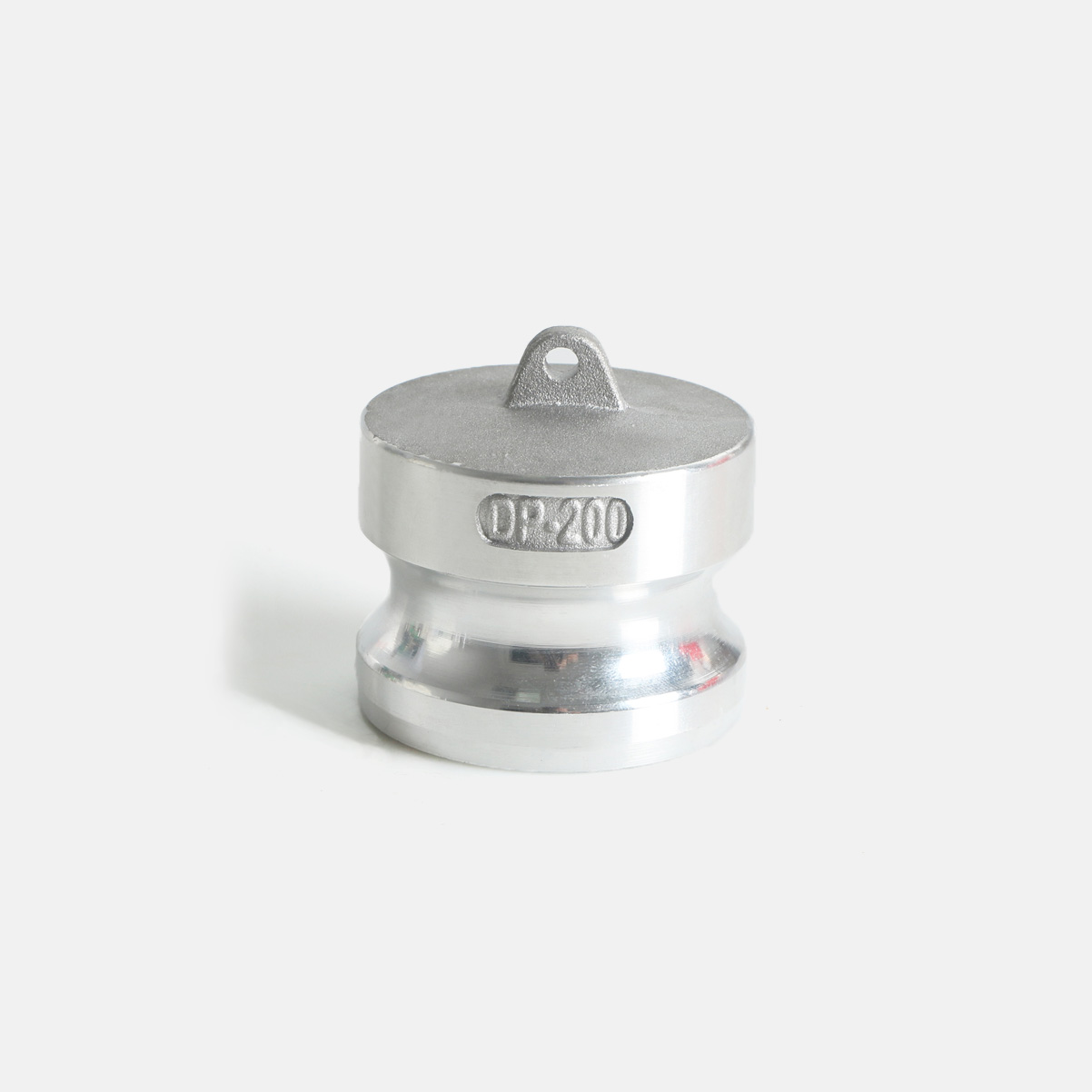

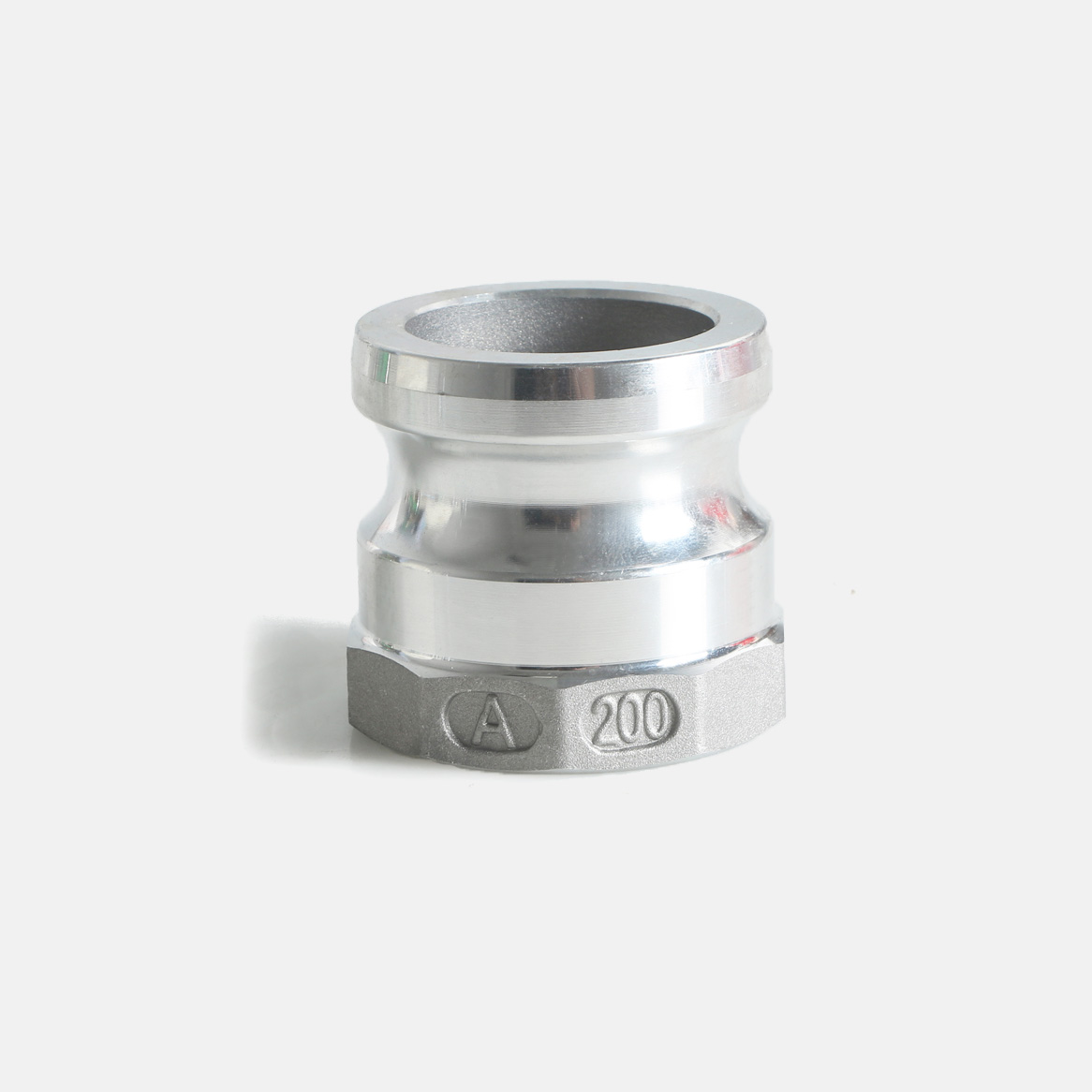

Aluminum camlock coupling.
Your benefits:
Save time compared with flanged or threaded fittings;
No tools needed;
Safety sealing for fluids, powders, and pellets
Lightweight and durable.
Aluminum Coupling Material:
Coupling body: aluminum;
Handles: brass
Pull rings: brass
Gaskets: The standard gasket for metallic couplings is Buna N, and EPDM, Viton, PTFE, and silicone are available.
Product Description:
Size: 1/2" to 8";
Packaging: Carton or as required;
MOQ: 300 pcs;
Thread: NPT, BSP, BST & NPSM available.
