Bsp Multiseal Fittings

Bsp Multiseal Fittings

Female multiseal fitting is designed to connect a hydraulic hose to a fluid system using a socket with multiple seals. It is widely used in the hydraulic and fluid conveying systems of machinery, oil fields, mines, buildings, transportation, and other industries.

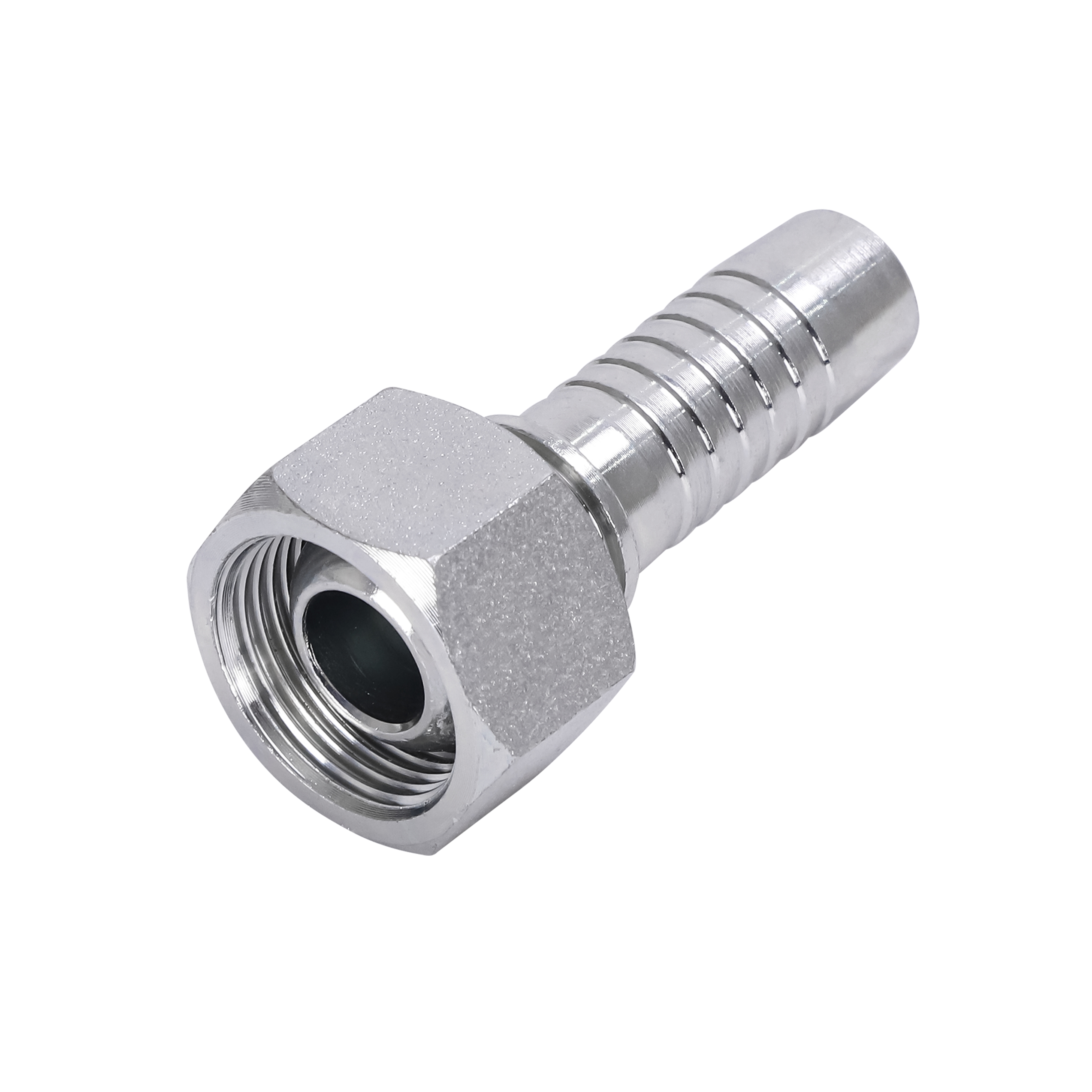

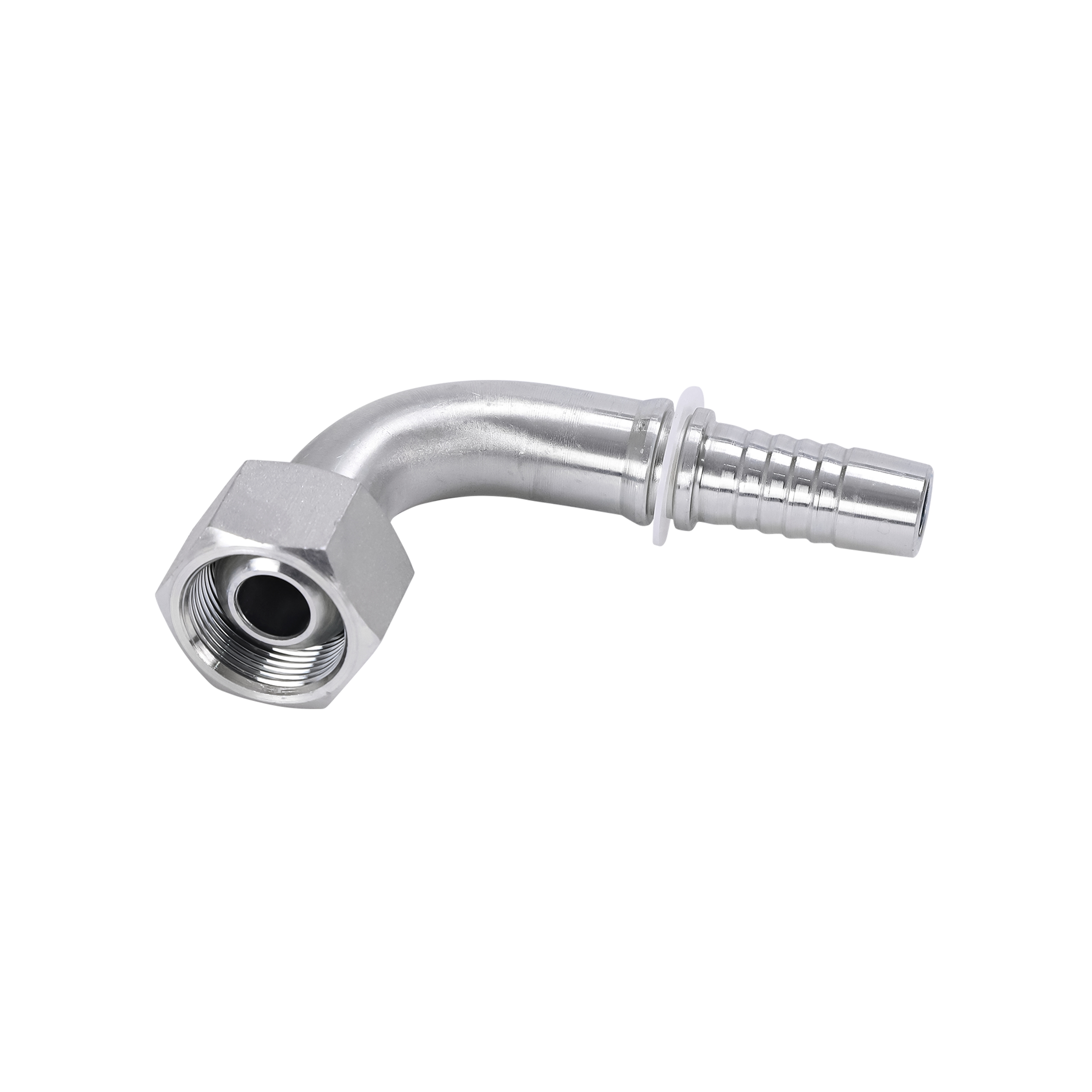

It has a straight type and an elbow type. It is used to connect hoses to hydraulic systems in applications where a straight type is not suitable due to space constraints or the need to route the hose in a specific direction. Elbow type can be useful in situations where space is limited or where a straight connector would cause the hose to bend too sharply, potentially damaging the hose or restricting fluid flow.
Overall, a female multiseal fitting is a versatile and useful hydraulic fitting that can help ensure the safe and efficient operation of hydraulic systems in a variety of applications.

  • Bsp Multiseal Fittings
  • Bsp Multiseal Fittings
Contact Us
  • Specification
    ATTRIBUTES DESCRIPTION
    PRODUCT NAME HYDRAULIC HOSE END FITTINGS, BSP MULTI SEAL, FEMALE
    PLACE OF ORIGIN CHINA
    BRAND NAME TIANXIANG

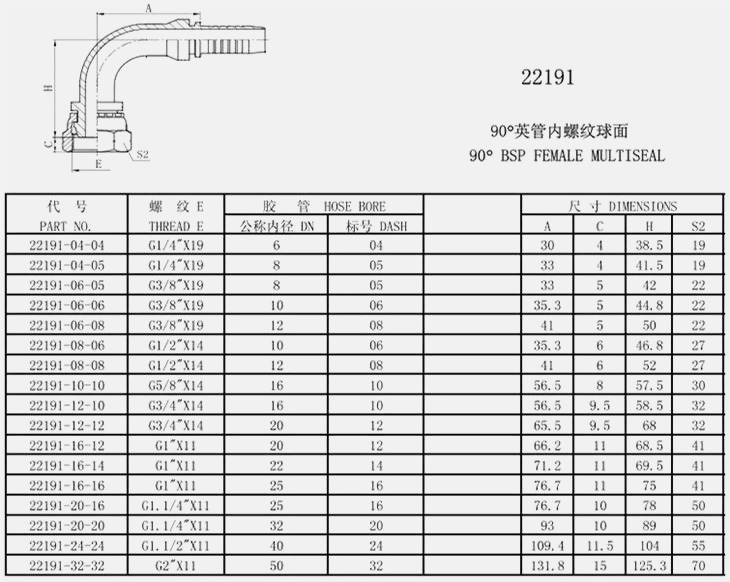

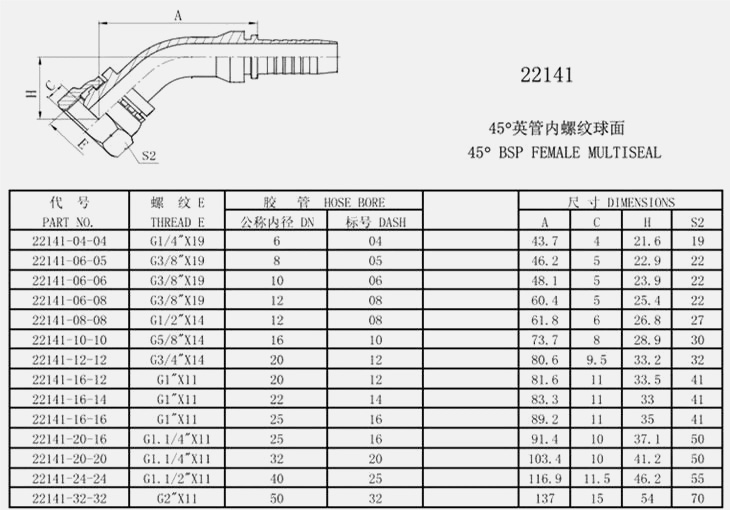

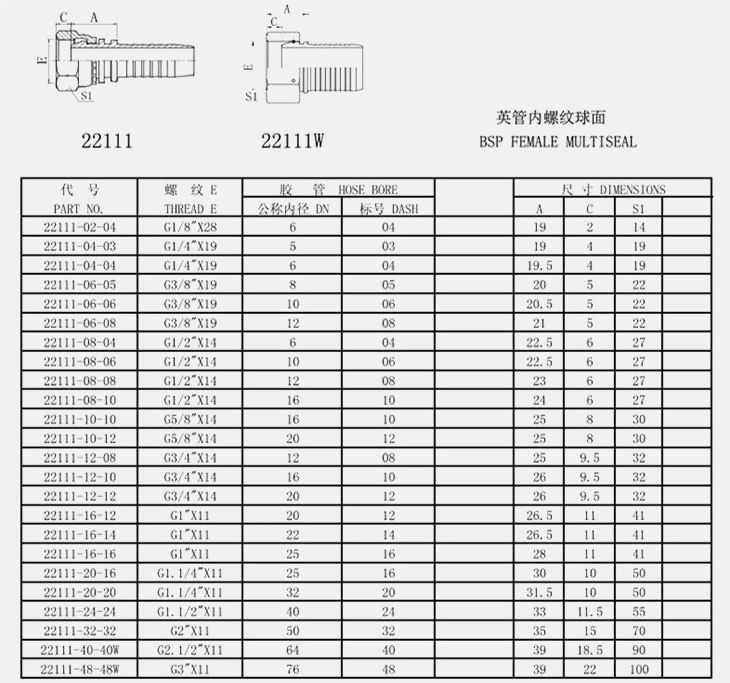

    ITEM NUMBER FOR BRAIDED HOSE 22111(STRAIGHT), 22141(45° ELBOW), 22191(90° ELBOW)
    ITEM NUMBER FOR SPIRAL HOSE 22112(STRAIGHT), 22142(45° ELBOW), 22192(90° ELBOW)
    MATERIAL CARBON STEEL 20#, OR STAINLESS STEEL
    STANDARD BSP
    SURFACE TREATMENT CR+3 ZINC or Zn-Ni
    COLOR YELLOW or WHITE
    THREAD BSPP
    SIZE AS PER THE BELOW SHEET
    PACKAGING DETAILS 60 CARTONS WRAPPED ON A WOODEN PALLET BY NYLON BELTS OR WRAPPED IN A BIG WOODEN CRATE
    CERTIFICATES ISO9001/2008
    FABRICATION TECH FORGED and CNC LATHING
    OEM SERVICE FABRICATED ACCORDING TO YOUR DRAWINGS OR SAMPLES
    LOADING PORT NINGBO/SHANGHAI
    MOQ 500/ITEM FOR SIZE ITEM, 2000 PCS/ITEM FOR SIZE ITEM
    LEADTIME USUALLY 25 DAYS AROUND AFTER ORDER CONFIRMATION. BUT IT DEPENDS ON ORDER VOLUME
    SUPPLY ABILITY 50000 SETS/ MONTH
